HD74ALVCH162821

Features: * VCC = 2.3 V to 3.6 V* Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)* Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)* High output current ±12 mA (@VCC = 3.0 V)* Bus hold on data inputs eliminates the need for external pullup / pulldown resistors* All output...

product image

HD74ALVCH162821 Picture
SeekIC No. : 004360556 Detail

HD74ALVCH162821: Features: * VCC = 2.3 V to 3.6 V* Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)* Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)* High output current ±12 mA (@VCC = 3.0 ...

floor Price/Ceiling Price

Part Number:
HD74ALVCH162821
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/4

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*  VCC = 2.3 V to 3.6 V
*  Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
*  Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
*  High output current ±12 mA (@VCC = 3.0 V)
*  Bus hold on data inputs eliminates the need for external pullup / pulldown resistors
*  All outputs have equivalent 26 W  series resistors, so no external resistors are required.



Pinout

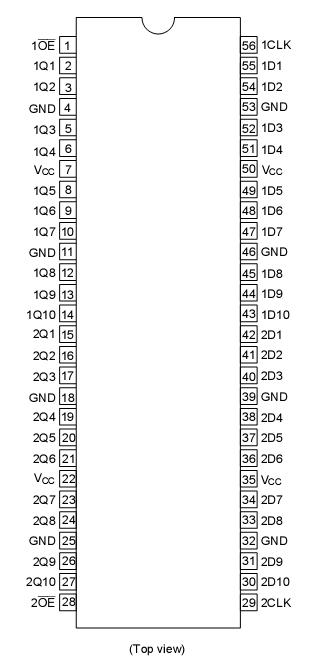

  Connection Diagram


Specifications

Item

Symbol

Ratings

Unit

Test Conditions



VCC

0.5 to 4.6

V




Input voltage range *1

VI

0.5 to 4.6

V




Output voltage range *1, 2

VO

0.5 to VCC  +0.5

V



Input clamp current

IIK

50

mA

V O< 0

Output clamp current

IOK

50

mA

VO < 0 or VO > VCC

Continuous output current

IO

50

mA

VO = 0 to VCC

V CC, GND current / pin

ICC or IGND

100

mA



Maximum power dissipatio
at Ta = 55 C (in still air)*3

PT

1

mW

 TSSOP

Storage temperature

Tstg

65 to 150

C






Description

The HD74ALVCH162821 can be used as two 10-bit flip flops or one 20-bit flip flop.  The 20 flip flops are edge triggered D-type flip flops.  On the positive transition of the clock (CLK) input, the HD74ALVCH162821 provides true data at the Q outputs.  A buffered output enable (OE input can be used to place the ten outputs in either a normal logic state (high or low level) or a high impedance state.  In the high impedance state, the outputs neither load nor drive the bus lines significantly.  The high impedance state and increased drive provide the capability to drive bus line without need for interface or pullup components.  The output enable (OE) input does not affect the internal operations of the flip flops.  Old data can be retained or new data can
be entered while the outputs are in the high impedance state.  Active bus hold circuitry is provided to hold unused or floating data inputs at a valid logic level.  All outputs of HD74ALVCH162821 which are designed to sink up to 12 mA, include 26 W  resistors to reduce overshoot and undershoot.
