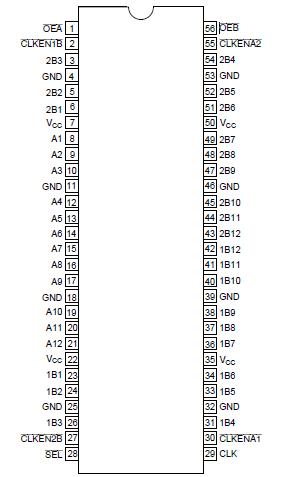

Features: · VCC = 2.3 V to 3.6 V· Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)· Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)· High output current ±24 mA (@VCC = 3.0 V)· Bus hold on data inputs eliminates the need for external pullup / pulldown resistorsPinoutSpecif...
HD74ALVCH16270: Features: · VCC = 2.3 V to 3.6 V· Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)· Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)· High output current ±24 mA (@VCC = 3.0 ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Item |
Symbol |
Ratings |
Unit |
Conditions |
Supply voltage |
VCC |
0.5 to 4.6 |
V |
|
Input voltage *1,2 |
VI |
0.5 to 4.6 |
V |
Except I/O ports |
0.5 to VCC +0.5 |
I/O ports | |||
Output voltage *1,2 |
VO |
0.5 to VCC +0.5 |
V |
|
Input clamp current |
IIK |
-50 |
mA |
VI < 0 |
Output clamp current |
IOK |
±50 |
mA |
VO<0 or VO>VCC |
Continuous output current |
IO |
±50 |
mA |
VO = 0 to VCC |
±100 |
||||
Maximum power dissipation at Ta = 55°C (in still air)*3 |
PT |
1 |
W |
TSSOP |
Storage temperature |
Tstg |
65 to 150 |
°C |
Notes: Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute maximum rated conditions for extended periods may affect device reliability.
1. The input and output negative voltage ratings may be exceeded if the input and output clamp current ratings are observed.
2. This value is limited to 4.6 V maximum.
3. The maximum package power dissipation is calculated using a junction temperature of 150°C and a board trace length of 750 mils.
The HD74ALVCH16270 is used in applications where data must be transferred from a narrow high speed bus to a wide lower frequency bus. The HD74ALVCH16270 provides synchronous data exchange between the two ports. Data is stored in the internal registers on the low to high transition of the clock (CLK) input when the appropriate CLKEN inputs are low. The select (SEL) line selects 1B or 2B data for the A outputs. For data transfer in the A to B direction, a two stage pipeline is provided in the A to 1B path, with a single storage register in the A to 2B path. Proper control of the CLKENA inputs allows two sequential 12-bit words to be presented synchronously as a 24-bit word on the B port. Data flow of HD74ALVCH16270 is controlled by the active low output enables (OEA, OEB). The control terminals are registered to synchronize the bus direction changes with CLK. Active bus hold circuitry is provided to hold unused or floating data inputs at a valid logic level.
