Product Details

Description



Features:

·  VCC = 2.3 V to 3.6 V
·  Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
·  Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
·  Bus hold on data inputs eliminates the need for external pullup / pulldown resistors


Pinout

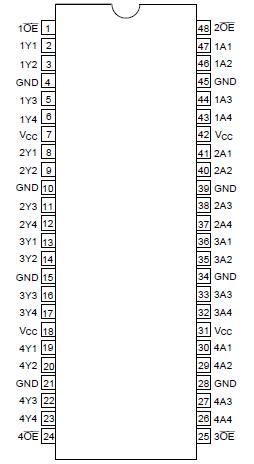

Connection Diagram


Specifications

Item
Symbol
Ratings
Unit
Conditions
Supply voltage
VCC
0.5 to 4.6
V
Input voltage *1
VI
0.5 to 4.6
V
Output voltage *1,2
VO
0.5 to VCC +0.5
V
Input clamp current
IIK
-50
mA
VI < 0
Output clamp current
IOK
±50
mA
VO<0 or VO>VCC
Continuous output current
IO
±50
mA
VO = 0 to VCC
VCC, GND current / pin
ICC or IGND
±100
mA

Maximum power dissipation at Ta = 55°C (in still air)*3
PT
0.85
W
TSSOP
Storage temperature
Tstg
65 to 150
°C

Notes: Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute maximum rated conditions for extended periods may affect device reliability.
1. The input and output negative voltage ratings may be exceeded if the input and output clamp current ratings are observed.
2. This value is limited to 4.6 V maximum.
3. The maximum package power dissipation is calculated using a junction temperature of 150°C and a board trace length of 750 mils.




Description

The HD74ALVCH16244 is designed specifically to improve both the performance and density of three state memory address drivers, clock drivers, and bus oriented receivers and transmitters. The HD74ALVCH16244 can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. It provides true outputs and symmetrical OE (active-low output-enable) inputs. Active bus hold circuitry is provided to hold unused or floating data inputs at a valid logic level.
