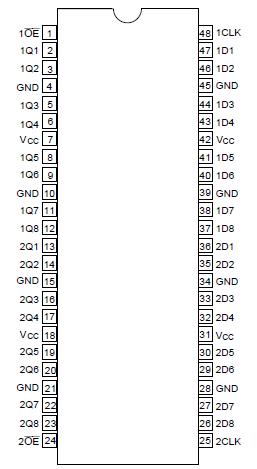

Features: ` VCC = 2.3 V to 3.6 V` Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)` Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)` High output current ±12 mA (@VCC = 3.0 V)` Bus hold on data inputs eliminates the need for external pullup / pulldown resistors` All output...
HD74ALVCH162374: Features: ` VCC = 2.3 V to 3.6 V` Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)` Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)` High output current ±12 mA (@VCC = 3.0 ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Item |
Symbol |
Ratings |
Unit |
Conditions |
Supply voltage |
VCC |
0.5 to 4.6 |
V |
|
Input voltage *1 |
VI |
0.5 to 4.6 |
V |
|
Output voltage *1,2 |
VO |
0.5 to VCC +0.5 |
V |
|
Input clamp current |
IIK |
-50 |
mA |
VI < 0 |
Output clamp current |
IOK |
±50 |
mA |
VO<0 or VO>VCC |
Continuous output current |
IO |
±50 |
mA |
VO = 0 to VCC |
VCC, GND current / pin |
ICC or IGND |
±100 |
mA |
|
Maximum power dissipation at Ta = 55°C (in still air)*3 |
PT |
0.85 |
W |
TSSOP |
Storage temperature |
Tstg |
65 to 150 |
°C |
Notes: Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute maximum rated conditions for extended periods may affect device reliability.
1. The input and output negative voltage ratings may be exceeded if the input and output clamp current ratings are observed.
2. This value is limited to 4.6 V maximum.
3. The maximum package power dissipation is calculated using a junction temperature of 150°C and a board trace length of 750 mils.
The HD74ALVCH162374 is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. HD74ALVCH162374 can be used as two 8-bit flip flops or one 16-bit flip flop. On the positive transition of the clock (CLK) input, the Q outputs of the flip flop take on the logic levels set up at the data (D) inputs.
The output enable (OE) input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or a high impedance state. In the high impedance state, the outputs neither load nor drive the bus lines significantly. The high impedance state and the increased drive provide the capability to drive bus lines without need for interface or pullup components. OE does not affect internal operations of the flip flops. Old data can be retained or new data can be entered while the outputs are in the high impedance state.Active bus hold circuitry is provided to hold unused or floating data inputs at a valid logic level. All outputs of HD74ALVCH162374 which are designed to sink up to 12 mA, include 26 resistors to reduce overshoot and undershoot.
