Features:

` Supports PC133 and meets "PC SDRAM registered DIMM specification, Rev. 0.9"
` VCC = 2.3 V to 3.6 V
` Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
` Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
` High output current ±12 mA (@VCC = 3.0 V)
` All outputs have series resistors, so no external resistors are required
` tpd (CLK to Y) = 3.5 ns (Max) (@VCC = 3.3±0.3 V, Ta = 0 to 85°C)

Pinout

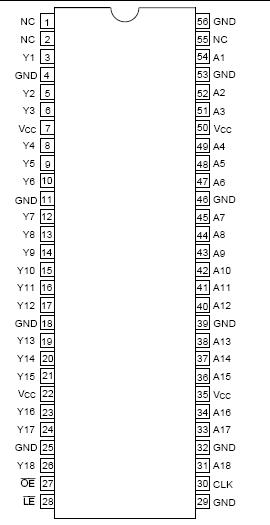

Connection Diagram

Specifications

Item	Symbol	Ratings	Unit	Conditions
Supply voltage range	v_cc	0.5 to 4.6	V
Input voltage range *1	v_i	0.5 to 4.6	V
Output voltage range *	v_o	0.5 to VCC+0.5	V
Input clamp current	l_ik	-50	mA	VI < 0
Output clamp current	L_OK	±50	mA	VO < 0 or VO > V_CC
Continuous output current	L_O	±50	mA	VO = 0 to V_CC
VCC, GND current / pin	L_CC L_GND	±100	mA
Maximum power dissipation at Ta = 55°C (in still air) *3	P_T	1	W	TSSOP
Storage temperature range	T_STG	65 to 150	°C

Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the
device. These are stress ratings only, and functional operation of the device at these or any other conditions
beyond those indicated under "recommended operating condition" is not implied. Exposure to absolutemaximum-
rated conditions for extended periods may affect device reliability.
Notes: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp
current ratings are observed.
2. The input and output positive-voltage ratings may be exceeded up to 4.6 V if the input and output
clamp-current ratings are observed.
3. The maximum power dissipation is calculated using a junction temperature of 150°C and board
trace length of 750 mils.

Description

The HD74ALVCF162834 is an 18-bit universal bus driver designed for 2.3 V to 3.6 V VCC operation.

Data flow from A to Y is controlled by the output enable (OE). The HD74ALVCF162834 operates in the transparent mode when the latch enable (LE) is low. When LE is low, the A data is latched if the clock (CLK) input is held at a high or low logic level. If the LE is high, the A data is stored in the latch/flip flop on the low to high transition of CLK. When OE is high, the outputs are in the high impedance state.

To ensure the high impedance state during power up or power down, OE should be tied to VCC through a pullup registor; the minimum value of the HD74ALVCF162834 registor is determined by the current sinking capability of the driver.All outputs, which are designed to sink up to 12 mA, include series resistors to reduce overshoot and undershoot.
