Features:

• The basic gate function is lined up as hitachi uni logic series.
• Supplied on emboss taping for high speed automatic mounting.
• Supply voltage range : 1.2 to 3.6 V
Operating temperature range : −40 to +85°C
• All inputs VIH (Max.) = 3.6 V (@VCC = 0 V to 3.6 V)
All outputs VO (Max.) = 3.6 V (@VCC = 0 V)
• Output current ±2 mA (@VCC = 1.2 V)
±4 mA (@VCC = 1.4 V to 1.6 V)
±6 mA (@VCC = 1.65 V to 1.95 V)
±18 mA (@VCC = 2.3 V to 2.7 V)
±24 mA (@VCC = 3.0 V to 3.6 V)
• Package type


Pinout

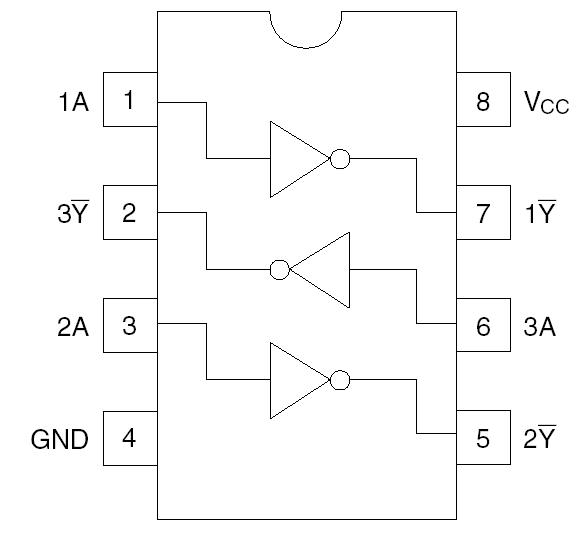

Connection Diagram


Specifications

Item Symbol Ratings Unit Conditions
Supply voltage range VCC −0.5 to 4.6 V
Input voltage range *1 VI −0.5 to 4.6 V
Output voltage range *1, 2 VO −0.5 to VCC+0.5 V Output : H or L
−0.5 to 4.6 V VCC : OFF
Input clamp current IIK −50 mA VI < 0
Output clamp current IOK ±50 mA VO < 0 or VO > VCC
Continuous output current IO ±50 mA VO = 0 to VCC
Continuous current through
VCC or GND		 ICC or IGND ±100 mA
Maximum power dissipation
at Ta = 25°C (in still air) *3		 PT 200 mW
Storage temperature Tstg −65 to 150 °C

Notes: The absolute maximum ratings are values which must not individually be exceeded, and furthermore, no two of which may be realized at the same time.
1. The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
2. This value is limited to 4.6 V maximum.
3. The maximum package power dissipation was calculated using a junction temperature of 150°C.


Description

The HD74ALVC2G04 has triple inverters in a 8 pin package. Low voltage and high speed operation is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life.
