HD74ACT283

Features:

·  Outputs Source/Sink 24 mA
·  HD74ACT283 has TTL-Cmpatible Inputs

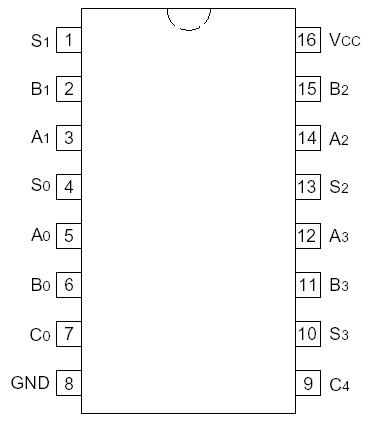

Pinout




Specifications

Item	Symbol	Max	Unit	Condition
Maximum quiescent supply current	ICC	80	A	VIN = VCC or ground, VCC = 5.5 V, Ta = Worst case
Maximum quiescent supply current	ICC	8.0	A	VIN = VCC or ground, VCC = 5.5 V, Ta = 25°C
Maximum ICC/input (HD74ACT283)	ICCT	1.5	mA	VIN = VCC 2.1 V, VCC = 5.5 V, Ta = Worst case

Description

The HD74AC283/HD74ACT283 high-speed 4-bit binary full adder with internal carry lookahead accepts two 4-bit binary works (A0 A3, B0 B3) and a Carry input (C0). It generates the binary Sum outputs (S0 S3) and the Carry output (C4) from the most significant bit. The HD74AC283/HD74ACT283 will operate with either active High or active Low operands (positive or negative logic).
