HD74AC670

Features:

·  3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
·  Outputs Source/Sink 24 mA

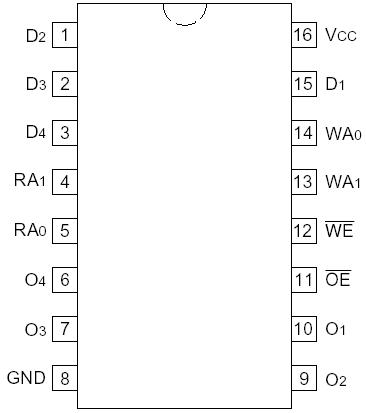

Pinout




Specifications

Item	Symbol	Max	Unit	Condition
Maximum quiescent supply current	ICC	80	A	VIN = VCC or ground, VCC = 5.5 V, Ta = Worst case
Maximum quiescent supply current	ICC	8.0	A	VIN = VCC or ground, VCC = 5.5 V, Ta = 25°C

Description

The HD74AC670 contains 16 high speed, low power, transparent D-type latches arranged as four words of four bits each, to function as a 4×4 register file. Separate read and write inputs, both address and enable, allow simultaneous read and write operation. The  3-state outputs make HD74AC670 possible to connect up to 128 outputs to increase the word capacity up to 512 words. Any number of these devices can be operated in parallel to generate an n-bit length.
