Product Details

Description



Features:

·  Outputs Source/Sink 24 mA


Pinout

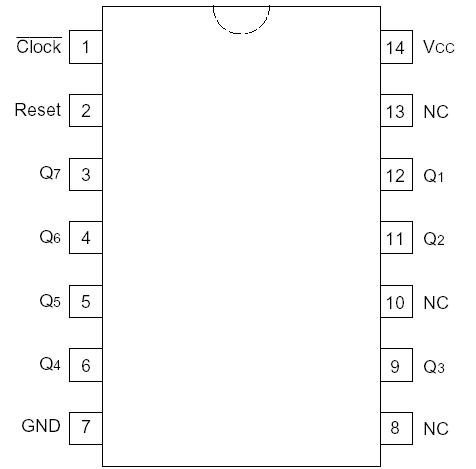

Connection Diagram


Specifications

Item Symbol Max Unit Condition
Maximum quiescent supply current ICC 80 A VIN = VCC or ground, VCC = 5.5 V,
Ta = Worst case
Maximum quiescent supply current ICC 8.0 A VIN = VCC or ground, VCC = 5.5 V,
Ta = 25°C



Description

The HD74AC4024 is a 4-stage counter. This device is incremented on the falling edge (negative transition) of the input clock, and all its output is reset to a low level by applying a logical high on its reset input.
