Product Details

Description



Features:

·  3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
·  Outputs Source/Sink 24 mA
·  HD74ACT366 has TTL-Compatible Inputs


Pinout

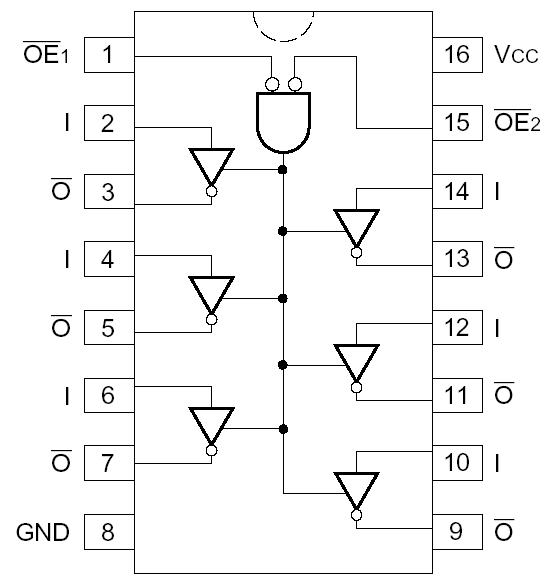

Connection Diagram


Specifications

Item Symbol Max Unit Condition
Maximum quiescent supply current ICC 80 A VIN = VCC or ground, VCC = 5.5 V,
Ta = Worst case
Maximum quiescent supply current ICC 8.0 A VIN = VCC or ground, VCC = 5.5 V,
Ta = 25°C
Maximum ICC/input (HD74ACT366) ICCT 1.5 mA VIN = VCC 2.1 V, VCC = 5.5 V,
Ta = Worst case
