Product Details

Description



Features:

·  Outputs Source/Sink 24 mA


Pinout

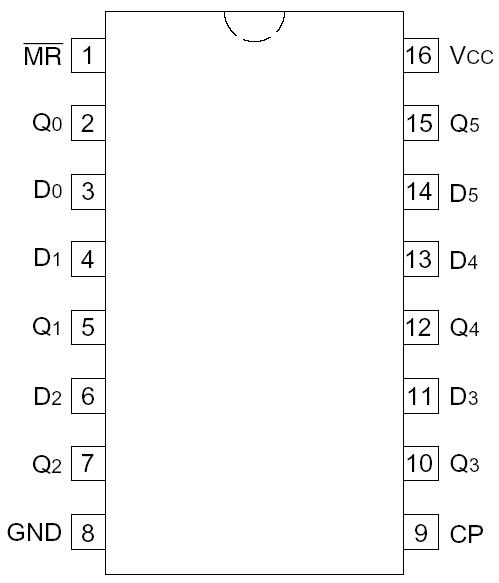

Connection Diagram


Specifications

Item Symbol Max Unit Condition
Maximum quiescent supply current ICC 80 A VIN = VCC or ground, VCC = 5.5 V,
Ta = Worst case
Maximum quiescent supply current ICC 8.0 A VIN = VCC or ground, VCC = 5.5 V,
Ta = 25°C



Description

The HD74AC174 is a high-speed hex D flip-flop. The device is used primarily as a 6-bit edge-triggered storage register. The information on the D inputs is transferred to storage during the Low-to-High clock transition. The HD74AC174 has a Master Reset to simultaneously clear all flip-flops.
