Product Details

Description



Features:

·  Duty cycle: About 1/100 to 1/480
·  120 LCD drive circuits
·  High LCD driving voltage: 14V to 40V
·  Output division function (2 ´ 60-channel outputs)
·  Display off function
·  Operating voltage: 2.5V to 5.5V
·  Slim-TCP
·  Low output impedance: 0.7 kW (typ)

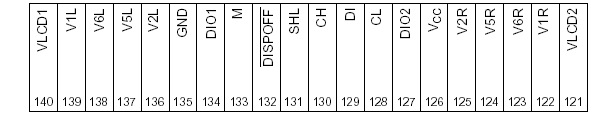

Pinout

Connection Diagram


Specifications

Item Symbol Rating Unit Notes
Power supply voltage for logic circuits

Power supply voltage for LCD drive circuits

Input voltage 1

Input voltage 2

Input voltage 3

Operating temperature

Storage temperature		 VCC

VLCD

VT1

VT2

VT3

Topr

Tstg		 0.3 to +7.0

0.3 to +42

0.3 to VCC + 0.3

0.3 to VLCD + 0.3

0.3 to +7.0

30 to +75

55 to +110		 V

V

V

V

V



 1, 5

1, 5

1, 2

1, 3

1, 4


Notes:
1. The reference point is GND (0V).
2. Applies to pins CL, M, SHL, DI, DISPOFF, and CH.
3. Applies to pins V1 and V6.
4. Applies to pins V2 and V5.
5. Power should be applied to VCCGND first, and then VLCDGND. It should be disconnected in the reverse order.
6. If the LSI is used beyond its absolute maximum ratings, it may be permanently damaged.
    It should always be used within its specified operating range in order to prevent malfunctions or loss of reliability.


Description

The HD66113T is a common driver for large dot matrix liquid crystal graphics displays. It features 120 channels which can be divided into two groups of 60 channels by selecting data input/output pins. The driver is powered by about 3V, making it suitable for the design of portable equipment which fully utilizes the low power dissipation of liquid crystal elements. The HD66113T, packaged in a slim tape carrier package (slim-TCP), makes it possible to reduce the size of the user area (wiring area).
