Product Details

Description



Features:

`  Input/output pins
    -- HD404344R series, HD4074344: 22 pins (10pins: Large-current I/O pins)
    -- HD404394 series: 21 pins (3 pins: intermediate-voltage NMOS open drain I/O; 5 pins: NMOS open drain I/O with 15-mA high-current driver)
`  Two timer/counters
    -- One timer output
    -- One event counter input (with programmable edge detection)
`  8-bit clock-synchronous serial interface (1 channel)
`  On-chip A/D converter
    -- HD404344R series, HD4074344: 8 bit ´ 4 channel
    -- HD404394 series: 8 bit ´ 3 channel (with Vref pin)
`  Built-in oscillator
    -- HD404344R Series Ceramic oscillator, CR oscillation, External clock drive is also possible.
    -- HD404394 Series, HD4074344 Ceramic oscillator, External clock drive is also possible.
`  Five interrupt sources
    -- One by external source (with programmable edge detection)
    -- Four by internal sources
`  Subroutine stack
    -- Maximum 16 levels including interrupts
`  Two low-power dissipation modes
    -- Standby mode
    -- Stop mode
`  One input signal to return from stop mode
`  Instruction cycle time
    -- 1 s (fOSC = 4 MHz)

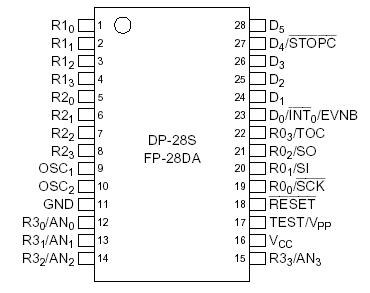

Pinout

Connection Diagram


Specifications

Item Symbol Value Unit Notes
Supply voltage
 VCC 0.3 to +7.0 V
Programming voltage
 VPP 0.3 to +14.0 V 1
Pin voltage
 VT 0.3 to VCC + 0.3 V 2
0.3 to +15.0 V 3
Total permissible input current
 IO 100 mA 4
Total permissible output current
 IO 30 mA 5
Maximum input current IO 30 mA 6.7
4 mA 6.8
Maximum output current IO 4 mA 9
Operating temperature Topr 20 to +75 °C 10
Storage temperature Tstg 55 to +125 °C 11



Description

The HD404344R series and HD404394 series 4-bit microcomputers are products of the HMCS400 series, which is designed to make application systems compact while realizing higher performance and increasing program productivity.

Each HD404344R series and HD404394 series microcomputer has an A/D converter, two timers and a serial interface. The HD404344R series includes the HD404344R with on-chip 4-kword ROM, HD404342R with 2-kword ROM, and HD404341R with 1-kword ROM. The HD404394 series includes the HD404394 with on-chip 4-kword ROM, HD404392 with 2-kword ROM, and HD404391 with 1-kword ROM.

The HD404344R series and HD404394 series are the PROM version ZTATTM microcomputers. Programs can be written to the PROM by a PROM writer, which can dramatically shorten system development periods and smooth the process from debugging to mass production. (The PROM program specifications are the same as for the 27256.) ZTATTM: Zero Turn Around Time ZTAT is a Trademark of Hitachi Ltd.
