HD29050

Features: ` Built in current restriction when short circuit` Power up / down protection.` High output current I OH = 40 mA IOL = 40 mAPinoutSpecifications Item Symbol Ratings Unit Supply Voltage*1 VCC 7 V Input Voltage A , B*3 VIN ±25 V *2Differential I...

product image

HD29050 Picture
See larger image
SeekIC No. : 004360056 Detail

HD29050: Features: ` Built in current restriction when short circuit` Power up / down protection.` High output current I OH = 40 mA IOL = 40 mAPinoutSpecifications Item Symbol Ratings Unit ...

HD29050 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD29050
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Built in current restriction when short circuit
`  Power up / down protection.
`  High output current I OH = 40 mA IOL = 40 mA




Pinout

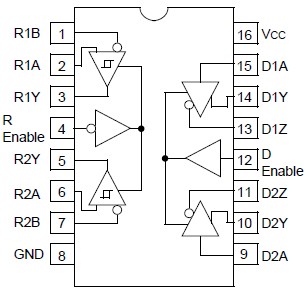

Connection Diagram


Specifications

Item
Symbol
Ratings
Unit
Supply Voltage*1
VCC
7
V
Input Voltage A , B*3
VIN
±25
V
                                        *2
Differential Input oltage   *3
VID
±25
V
Output Current*3
IO
50
mA
Enable Input Voltage
VIE
5.5
V
Input Voltage*4
VIN
5.5
V
                                       *4
Output Applied Voltage  *5
VO
1.0 to 7.0
V
Operating Temperature Range
Topr
0 to 70
Storage Temperature Range
Tstg
65 to 150

Notes: 1. All voltage values except for differential input voltage are with respect to network ground terminal.
2. Differential input voltage is measured at the noninverting input with respect to the corresponding inverting input.
3. Only receiver
4. Only driver
5. Z state
6. The absolute maximum ratings are values which must not individually be exceeded, and furthermore, no two of which may be realized at the same time.




Description

The HD29050 features differential line drivers /receivers with three state output designed to meet the spec of EIA RS 422A and 423A. Each device has two drivers / receivers in a 16 pin package.

The HD29050 becomes in enable state when active high for a driver and active low for a receiver.
