HD29029

Features: · High-speed operation 7 ns typ in transition times (tTLH, tTHL) at CL = 200 pF· No external components needed because direct drive is available at TTL level inputs· Output swing voltage : 12 V Sink / Sourse currents : 0.5 A (for each)· Output cross voltage : 50 % typ.PinoutSpecification...

product image

HD29029 Picture
See larger image
SeekIC No. : 004360055 Detail

HD29029: Features: · High-speed operation 7 ns typ in transition times (tTLH, tTHL) at CL = 200 pF· No external components needed because direct drive is available at TTL level inputs· Output swing voltage :...

HD29029 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD29029
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High-speed operation 7 ns typ in transition times (tTLH, tTHL) at CL = 200 pF
· No external components needed because direct drive is available at TTL level inputs
· Output swing voltage : 12 V Sink / Sourse currents : 0.5 A (for each)
· Output cross voltage : 50 % typ.


Pinout

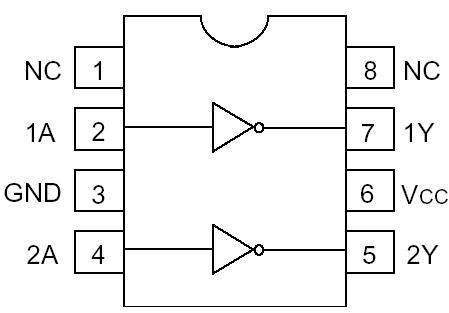

Connection Diagram
