HD26C32A

Features:

·Low power dissipation with CMOS process
·Meets EIA standard RS-422A/423A
·nput sensitivity:  °?0.2V (In the range of °?7 V of common mode input voltag
·Propagation delay time:  19 ns typ
·nput hysteresis width:  60 mV typ
·Three state outputs
·Differential Inputs are includes fail safe circuit
·Power up and power down protection
·Pin to pin compatible with HD26LS32/32A


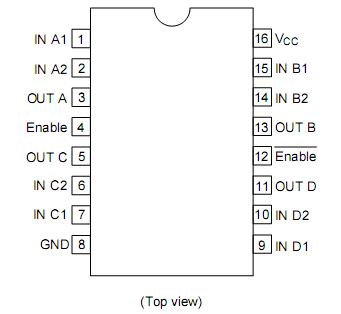

Pinout




Specifications

Item	Symbol	Ratings	Unit
Supply Voltage*2	VCC	7	V
Common Mode Input Voltage	VCM	±14	V
Differential Input Voltage*3	VDIFF	±14	V
Enable Input Voltage	VIN	7	V
Output Current	IO	±25	mA
Storage Temperature	Tstg	65 to +150	°C

Notes: 1. The absolute maximum ratings are values which must not individually be exceeded, and furthermore, no two of which may be realized at the same time.
2. All voltage values except for differential input voltage are with respect to network ground terminal.
3. Differential input voltage is measured at the noninverting input with respect to the corresponding inverting input.


Description

The HD26C32A provides differential line receivers which realize low power dissipation by CMOS process. The device has four receivers which meet the requirements of EIA standard RS-422A and RS-423A in a 16 pin package.

The enable function of HD26C32A is common to all four receivers and offers a choise of active high or active low inputs. Fail safe design ensures that if the inputs are open the outputs will always be high.
