Features: • Low Bit Error Rate• Data Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1MBit/s• Sync Identification and Lock-In• Clock Recovery• Manchester II Encoder, Decoder• Separate Encode and Decode• Low Operating Power . . . . . . . ....
HD-6408: Features: • Low Bit Error Rate• Data Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1MBit/s• Sync Identification and Lock-In• Clock Recovery• Manches...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
DescriptionThe HD-6409/883 Manchester Encoder-Decoder (MED) is a high speed, low power device manu...

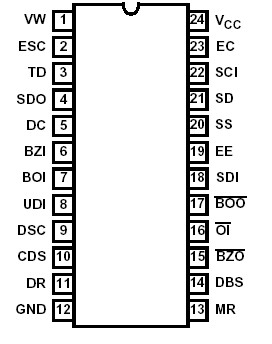

The HD-6408 is a CMOS/LSI Manchester Encoder/Decoder for creating a very high speed asynchronous serial data bus. The HD-6408 Encoder converts serial NRZ data (typically from a shift register) to Manchester II encoded data, adding a sync pulse and parity bit. The Decoder recognizes this sync pulse and identifies it as a Command Sync or a Data Sync. The data is then decoded and shifted out in NRZ code (typically into a shift register). Finally, the parity bit is checked. If there were no Manchester or parity errors the Decoder responds with a valid word signal. The Decoder puts the Manchester code to full use to provide clock recovery and excellent noise immunity at these very high speeds.
The HD-6408 can be used in many commercial applications such as security systems, environmental control systems, serial data links and many others. It utilizes a single 12 x clock and achieves data rates of up to one million bits per second with a very minimum overhead of only 4 bits out of 20, leaving 16 bits for data.
