Product Details

Description



Features:

• 3 Micron Radiation Hardened SOS CMOS
• Total Dose 200K RAD (Si)
• SEP Effective LET No Upsets: >100 MEV-cm2/mg
• Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/Bit-Day (Typ)
• Dose Rate Survivability: >1 x 1012 RAD (Si)/s
• Dose Rate Upset >1010 RAD (Si)/s 20ns Pulse
• Latch-Up Free Under Any Conditions
• Military Temperature Range: -55oC to +125oC
• Significant Power Reduction Compared to LSTTL ICs
• DC Operating Voltage Range: 4.5V to 5.5V
• LSTTL Input Compatibility
- VIL = 0.8V Max
- VIH = VCC/2 Min
• Input Current Levels Ii 5µA at VOL, VOH

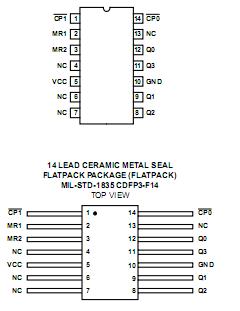

Pinout

Connection Diagram


Specifications

Supply Voltage (VCC). . . . . . . . . . . . . . . . . . . . . . . -0.5V to +7.0V
Input Voltage Range, All Inputs  . . . . . . . . . . .-0.5V to VCC +0.5V
DC Input Current, Any One Input  . . . . . . . . . . . . . . . . . . .±10mA
DC Drain Current, Any One Output. . . . . . . . . . . . . . . . . . .±25mA
(All Voltage Reference to the VSS Terminal)
Storage Temperature Range (TSTG) . . . . . . . . . . . -65 to +150
Lead Temperature (Soldering 10sec) . . . . . . . . . . . . . . . . . +265
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . . . . . .+175
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Class 1


Description

The Intersil HCTS93MS is a Radiation Hardened 4-bit binary ipple counter consisting of four master-slave flip-flops nternally connected to provide a divide-by-two and a divide-by-eight section. Each section has a separate clock input.

The HCTS93MS utilizes advanced CMOS/SOS technology o achieve high-speed operation. This device is a member of adiation hardened, high-speed, CMOS/SOS Logic Family.
