HCTS7266MS

Features: 3 Micron Radiation Hardened CMOS SOSTotal Dose 200K RAD (Si)SEP Effective LET No Upsets: >100 MEV-cm2/mgSingle Event Upset (SEU) Immunity < 2 x 10-9 Errors/Bit-Day(Typ)Dose Rate Survivability: >1 x 1012RAD (Si)/sDose Rate Upset >1010 RAD (Si)/s 20ns PulseLatch-Up Free Under A...

product image

HCTS7266MS Picture
See larger image
SeekIC No. : 004359971 Detail

HCTS7266MS: Features: 3 Micron Radiation Hardened CMOS SOSTotal Dose 200K RAD (Si)SEP Effective LET No Upsets: >100 MEV-cm2/mgSingle Event Upset (SEU) Immunity < 2 x 10-9 Errors/Bit-Day(Typ)Dose Rate Surv...

HCTS7266MS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HCTS7266MS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

3 Micron Radiation Hardened CMOS SOS
Total Dose 200K RAD (Si)
SEP Effective LET No Upsets: >100 MEV-cm2/mg
Single Event Upset (SEU) Immunity < 2 x 10-9  Errors/Bit-Day(Typ)
Dose Rate Survivability: >1 x 1012RAD (Si)/s
Dose Rate Upset >1010  RAD (Si)/s 20ns Pulse
Latch-Up Free Under Any Conditions
Military Temperature Range: -55 to +125
Significant Power Reduction Compared to LSTTL ICs
DC Operating Voltage Range: 4.5V to 5.5V
LSTTL Input Compatibility
   - VIL = 0.8V Max
   - VIH = 2.0V Min
Input Current Levels Ii 5A at VOL, VOH


Pinout

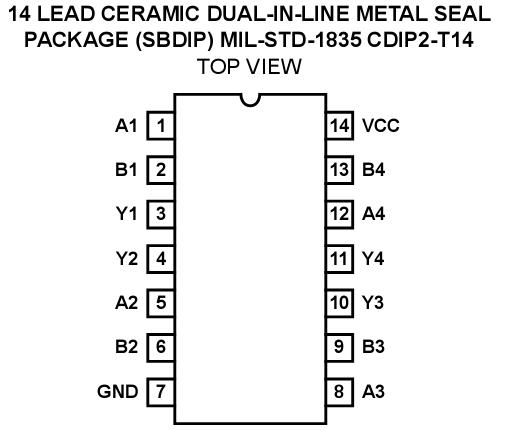

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .-0.5V to +7.0V
Input Voltage Range, All Inputs . . . . . . . . . . .  .-0.5V to VCC +0.5V
DC Input Current, Any One Input . . . . . . . . . . . . . .. . . . . . .±10mA
DC Drain Current, Any One Output. . . . . . . . . . . . . . . . . . . .±25mA
(All Voltage Reference to the VSS Terminal)
Storage Temperature Range (TSTG). . . . . . . . . . . . -65 to +150
Lead Temperature (Soldering 10sec). . . . . . . . .. . . . . . . . . +265
Junction Temperature. . . . . . . . . . . . . . . . . . . .. . . . . . . . . . +175
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1


Description

The Intersil HCTS7266MS is a Radiation Hardened quad 2-Inputexclusive NOR Gate. A logic level high on either one of the inputs(A or B) will force the output (y) low. A high on both inputs, or a lowon both inputs will force the output to a logic high.

The HCTS7266MS utilizes advanced CMOS/SOS technology toachieve high-speed operation. This device is a member of radia-tion hardened, high-speed, CMOS/SOS Logic Family with TTLinput compatibility.

The HCTS7266MS is supplied in a 14 lead Ceramic flatpack(K suffix) or a SBDIP Package (D suffix).
