HCTS299MS

Features: • 3 Micron Radiation Hardened CMOS SOS• Total Dose 200K RAD (Si)• SEP Effective LET No Upsets: >100 MEV-cm2/mg• Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/ Bit-Day (Typ)• Dose Rate Survivability: >1 x 1012 RAD (Si)/s• Dose Rate Upset ...

product image

HCTS299MS Picture
See larger image
SeekIC No. : 004359953 Detail

HCTS299MS: Features: • 3 Micron Radiation Hardened CMOS SOS• Total Dose 200K RAD (Si)• SEP Effective LET No Upsets: >100 MEV-cm2/mg• Single Event Upset (SEU) Immunity < 2 x 10-9 E...

HCTS299MS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HCTS299MS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3 Micron Radiation Hardened CMOS SOS
• Total Dose 200K RAD (Si)
• SEP Effective LET No Upsets: >100 MEV-cm2/mg
• Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/ Bit-Day (Typ)
• Dose Rate Survivability: >1 x 1012 RAD (Si)/s
• Dose Rate Upset >1010 RAD (Si)/s 20ns Pulse
• Latch-Up Free Under Any Conditions
• Fanout (Over Temperature Range)
-Bus Driver Outputs: 15 LSTTL Loads
• Military Temperature Range: -55 to +125
• Significant Power Reduction Compared to LSTTL ICs
• DC Operating Voltage Range: 4.5V to 5.5V
• LSTTL Input Compatibility
-VIL = 0.8V Max
-VIH = VCC/2 Min
• Input Current Levels Ii 5mA at VOL, VOH




Pinout

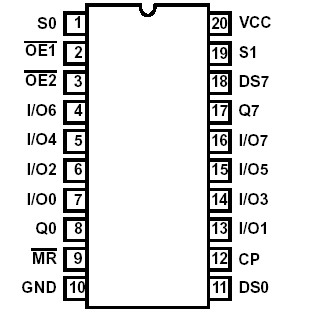

Connection Diagram




Specifications

Supply Voltage (VCC). . . . . . . . . . . . . . . . . . . . . . . . .-0.5 to +7.0V
Input Voltage Range, All Inputs . . . . . . . . . . . .-0.5V to VCC +0.5V
DC Input Current, Any One Input . . . . . . . . . . . . . . . . . . . ±10mA
DC Drain Current, Any One Output. . . . . . . . . . . . . . . . . . . ±25mA
(All Voltage Reference to the VSS Terminal)
Storage Temperature Range (TSTG) . . . . . . . . . . . -65 to +150
Lead Temperature (Soldering 10sec) . . . . . . . . . . . . . . . . . +265
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . . . . . .+175
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Class 1




Description

The Intersil HCTS299MS is a Radiation Hardened 8-bit shift/ storage register with three-state bus interface capability. The HCTS299MS register has four synchronous operating modes controlled by the two select inputs (S0, S1). The mode select, the serial data (DS0, DS7) and the parallel data (IO0 - IO7) respond only to the low to high transition of the clock (CP) pulse. S0, S1 and the data inputs must be one set up time period prior to the clocks positive transition. The master reset (MR) is an asynchronous active low input.

The HCTS299MS utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of radiation hardened, high-speed, CMOS/SOS Logic Family with TTL input compatibility.
