HCTS245T

Features: • QML Class T, Per MIL-PRF-38535• Radiation Performance- Gamma Dose () 1 x 105 RAD(Si)- Latch-Up Free Under Any Conditions- SEP Effective LET No Upsets: >100 MEV-cm2/mg- Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/Bit-Day (Typ)• 3 Micron Radiation Hardened...

product image

HCTS245T Picture
See larger image
SeekIC No. : 004359948 Detail

HCTS245T: Features: • QML Class T, Per MIL-PRF-38535• Radiation Performance- Gamma Dose () 1 x 105 RAD(Si)- Latch-Up Free Under Any Conditions- SEP Effective LET No Upsets: >100 MEV-cm2/mg- Sin...

HCTS245T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HCTS245T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• QML Class T, Per MIL-PRF-38535
• Radiation Performance
- Gamma Dose () 1 x 105 RAD(Si)
- Latch-Up Free Under Any Conditions
- SEP Effective LET No Upsets: >100 MEV-cm2/mg
- Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/Bit-Day (Typ)
• 3 Micron Radiation Hardened CMOS SOS
• Fanout (Over Temperature Range)
- Bus Driver Outputs - 15 LSTTL Loads
• Significant Power Reduction Compared to LSTTL ICs
• DC Operating Voltage Range: 4.5V to 5.5V
• LSTTL Input Compatibility
- VIL = 0.8V Max
- VIH = VCC/2 Min
• Input Current Levels Ii 5A at VOL, VOH


Pinout

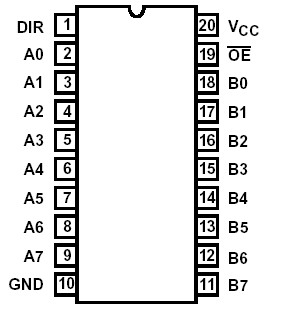

Connection Diagram


Description

Intersil's Satellite Applications FlowTM (SAF) devices are fully tested and guaranteed to 100kRAD total dose. These HCTS245T QML Class T devices are processed to a standard flow intended to meet the cost and shorter lead-time needs of large volume satellite manufacturers, while maintaining a high level of reliability.

The Intersil HCTS245T is a Radiation Hardened Non- Inverting Octal Bidirectional Bus Transceiver, Three-State, intended for two-way asynchronous communication between data busses. The HCTS245T allows data transmission from the A bus to the B bus or from the B bus to the A bus. The logic level at the direction input (DIR) determines the data direction. The output enable input (OE) puts the I/O port in the high-impedance state when high.
