Product Details

Description



Features:

· Inverting outputs
· Output capability: bus driver
· ICC category: MSI


Pinout

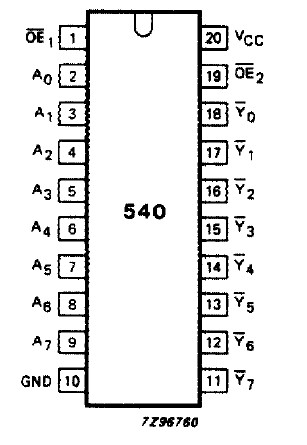

Connection Diagram


Description

The 74HC/HCT540 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.

The 74HC/HCT540 are octal inverting buffer/line drivers with 3-state outputs. The 3-state outputs are controlled by the output enable inputs OE1and OE2. A HIGH on OEn causes the outputs to assume a high impedance OFF-state.

The "540" in 74HC/HCT540 is identical to the "541" but has inverting outputs
