HCS500

Features: Security• Encrypted storage of manufacturer's code• Encrypted storage of encoder keys• Up to seven transmitters can be learned• KEELOQ code hopping technology• Normal and secure learning mechanismsOperating• 3.0V-5.5V operation• Internal oscillat...

product image

HCS500 Picture
See larger image
SeekIC No. : 004359865 Detail

HCS500: Features: Security• Encrypted storage of manufacturer's code• Encrypted storage of encoder keys• Up to seven transmitters can be learned• KEELOQ code hopping technology•...

HCS500 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HCS500
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Security
• Encrypted storage of manufacturer's code
• Encrypted storage of encoder keys
• Up to seven transmitters can be learned
• KEELOQ code hopping technology
• Normal and secure learning mechanisms
Operating
• 3.0V-5.5V operation
• Internal oscillator
• Auto bit rate detection
Other
• Stand-alone decoder chipset
• External EEPROM for transmitter storage
• Synchronous serial interface
• 1 Kbit user EEPROM
• 8-pin DIP/SOIC package




Application

• Automotive remote entry systems
• Automotive alarm systems
• Automotive immobilizers
• Gate and garage openers
• Electronic door locks
• Identity tokens
• Burglar alarm systems




Pinout

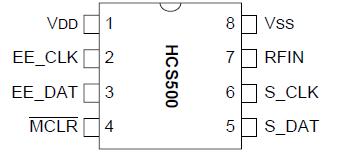

Connection Diagram




Specifications

Parameter Name Value
Reception Length Bits 66
Operating Voltage (V) 3.0 to 5.5
Decoder Functions S0 S0, 15 Serial Functions
Other Features Full-featured decoder with serial interface to microcontrollers
Transmitters Supported Up to 7
Encoders Supported HCS200, HCS201, HCS300, HCS301, HCS320, HCS360, HCS361, HCS362, HCS365, HCS370, HCS410, HCS412, HCS473


Ambient temperature under bias........................................-40°C to +85°C
Storage temperature ...................................................... -65°C to +150°C
Voltage on any pin with respect to VSS (except VDD)...... -0.6V to VDD +0.6V
Voltage on VDD with respect to Vss.............................................. 0 to +7.0V
Total power dissipation (Note) ........................................................ 700 mW
Maximum current out of VSS pin ....................................................... 200 mA
Maximum current into VDD pin .......................................................... 150 mA
Input clamp current, IIK (VI < 0 or VI > VDD) ...................................± 20 mA
Output clamp current, IOK (VO < 0 or VO >VDD) ..............................± 20 mA
Maximum output current sunk by any I/O pin...................................... 25 mA
Maximum output current sourced by any I/O pin................................. 25 mA
Note: Power dissipation is calculated as follows: PDIS = VDD x {IDD - IOH} + {(VDDVOH) x IOH} + (VOl x IOL)

NOTICE: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those
indicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.






Description

The HSC500 is a code hopping decoder designed for secure Remote Keyless Entry (RKE) systems. The HCS500 utilizes the patented KEELOQ? code-hopping system and high security learning mechanisms to make this a canned solution when used with the HCS encoders to implement unidirectional remote and access control systems. The HCS500 can be used as a stand-alone decoder or in conjunction with a microcontroller through a serial interface. The manufacturer's code, encoder keys, and synchronization information are stored in encrypted form in external EEPROM. The HCS500 operates over a wide voltage range of 3.0 volts to 5.5 volts. The decoder employs automatic bit-rate detection, which allows it to compensate for wide variations in transmitter data rate. Sophisticated error checking algorithms are built in to ensure only valid codes are accepted. Typical applications include automotive remote entry systems, automotive alarm systems, automotive immobilizers, gate and garage openers, electronic door locks, identity tokens and burglar alarms. HCS500 is available in 8-pin DIP/SOIC packages.
