HCS412

Features: Security• Programmable 64-bit encoder crypt key• Two 64-bit IFF keys• Keys are read protected• 32-bit bi-directional challenge and response using one of two possible keys• 69-bit transmission length• 32-bit hopping code,• 37-bit nonencrypted port...

product image

HCS412 Picture
See larger image
SeekIC No. : 004359863 Detail

HCS412: Features: Security• Programmable 64-bit encoder crypt key• Two 64-bit IFF keys• Keys are read protected• 32-bit bi-directional challenge and response using one of two possibl...

HCS412 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HCS412
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Security
• Programmable 64-bit encoder crypt key
• Two 64-bit IFF keys
• Keys are read protected
• 32-bit bi-directional challenge and response using one of two possible keys
• 69-bit transmission length
• 32-bit hopping code,
• 37-bit nonencrypted portion
• Programmable 28/32-bit serial number
• 60-bit, read protected seed for secure learning
• Two IFF encryption algorithms
• Delayed counter increment mechanism
• Asynchronous transponder communication
• Transmissions include button Queuing information
Operating
• 2.0V to 6.3V operation
• Three switch inputs: S2, S1, S0 seven functions
• Battery-less bi-directional transponder capability
• Selectable baud rate and code word blanking
• Automatic code word completion
• Battery low detector
• PWM or Manchester data encoding
• Combined transmitter, transponder operation
• Anticollision of multiple transponders
• Passive proximity activation
• Device protected against reverse battery
• Intelligent damping for high Q LC-circuits
• 100 mVPP sensitive LC input




Application

• Automotive remote entry systems
• Automotive alarm systems
• Automotive immobilizers
• Gate and garage openers
• Electronic door locks (Home/Office/Hotel)
• Burglar alarm systems
• Proximity access control




Pinout

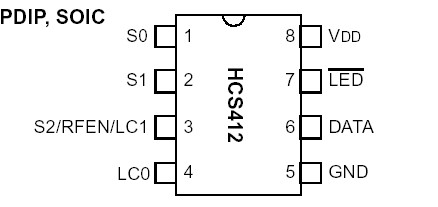

Connection Diagram




Specifications

Parameter NameValueProtocols9Transmission Code Length Bits69Other FeaturesPassive Entry Encoder and Transponder, bi-directional authentication, user EEPROM, Queue counterSeed Length 60Code Hoppings Bits32Operating Volage (V)2.0 to 6.6Tunable OSCYesFunction Codes7CRCYes

Parameter Name Value
Protocols 9
Transmission Code Length Bits 69
Other Features Passive Entry Encoder and Transponder, bi-directional authentication, user EEPROM, Queue counter
Seed Length 60
Code Hoppings Bits 32
Operating Volage (V) 2.0 to 6.6
Tunable OSC Yes
Function Codes 7
CRC Yes


Symbol
Item
Rating
Units
VDD
 Supply voltage
-0.3 to 6.6
V
VIN*
 Input voltage
-0.3 to VDD + 0.3
V
VOUT
 Output voltage
-0.3 to VDD + 0.3
V
IOUT
 Max output current
50
mA
TSTG
 Storage temperature
-55 to +125
C (Note)
TLSOL
 Lead soldering temp
300
C (Note)
VESD
 ESD rating (Human Body Model)
4000
V
Note: Stresses above those listed under "ABSOLUTE MAXIMUM RATINGS" may cause permanent damage to the device.
* If a battery is inserted in reverse, the protection circuitry switches on, protecting the device and draining the battery.




Description

The HCS412 combines the patented KEELOQ? code hopping technology and bi-directional transponder challenge-and-response security into a single chip solution for logical and physical access control. High security learning mechanisms make this a turnkey solution when used with the KEELOQ? decoders. When the HCS412 is used as a code hopping encoder device, it is ideally suited to keyless entry systems, primarily for vehicles and home garage door openers. It is meant to be a cost-effective, yet secure solution to such systems. The HCS412 can also be used as a secure bi-directional transponder for verification of a token. The HCS412 has a sensitive transponder input that increases the communication range beyond traditional transponder systems. This makes the HCS412 ideal for passive keyless entry, secure access control and identification applications. A single HCS412 can be used as an encoder for Remote Keyless Entry (RKE) and a transponder for immobilization in the same circuit and thereby dramatically reducing the cost of hybrid transmitter/transponder circuits.

The HCS412 combines patented KEELOQ code hopping technology with bi-directional transponder challenge- and-response security into a single chip solution for logical and physical access control.

When used as a code hopping encoder, the HCS412 is ideally suited to keyless entry systems; vehicle and garage door access in particular. The same HCS412 can also be used as a secure bi-directional transponder for contactless token verification. These capabilities make the HCS412 ideal for combined secure access control and identification applications, dramatically reducing the cost of hybrid transmitter/transponder solutions.
