HCS245MS

Features:

• 3 Micron Radiation Hardened CMOS SOS
• Total Dose 200K or 1 Mega-RAD(Si)
• Latch-Up Free Under Any Conditions
• Fanout (Over Temperature Range)
- Bus Driver Outputs - 15 LSTTL Loads
• Military Temperature Range: -55 to +125
• Significant Power Reduction Compared to LSTTL ICs
• DC Operating Voltage Range: 4.5V to 5.5V
• LSTTL Input Compatibility
- VIL = 0.8V Max
- VIH = VCC/2 Min
• Input Current Levels Ii 5µA at VOL, VOH

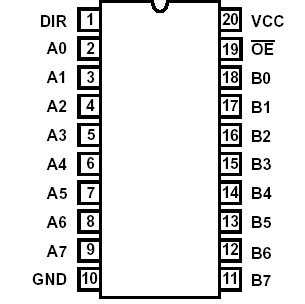

Pinout




Specifications

Supply Voltage (VCC). . . . . . . . . . . . . . . . . . .. . . . . -0.5V to +7.0V
Input Voltage Range, All Inputs . . . . . . . . .  . .-0.5V to VCC +0.5V
DC Input Current, Any One Input . . . . . . . . . . . . . .. . . . . .±10mA
DC Drain Current, Any One Output. . . . . . . . . . . . . . . . . . .±25mA
(All Voltage Reference to the VSS Terminal)
Storage Temperature Range (TSTG) . . . . . . . . . . . -65 to +150
Lead Temperature (Soldering 10sec) . . . . . . . . . . . . . . . . . +265
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . .  . . . . . +175
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . Class 1


Description

The Intersil HCS245MS is a Radiation Hardened Non-Inverting Octal Bidirectional Bus Transceiver, Three-State, intended for two-way asynchronous communication between data busses. The HCS245MS allows data transmission from the A bus to the B bus or from the B bus to the A bus. The logic level at the direction input (DIR) determines the data direction. The output enable input (OE) puts the I/O port in the high-impedance state when high.

The HCS245MS utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of radiation hardened, high-speed, CMOS/SOS Logic Family.

The HCS245MS is supplied in a 20 lead Weld Seal Ceramic flatpack (K suffix) or a Weld Seal Ceramic Dual-In-Line Package (D suffix).
