HCPL4502

Maximum Reverse Diode Voltage : 5 V
Maximum Operating Temperature : + 100 C
Maximum Input Diode Current : 25 mA
Maximum Forward Diode Voltage : 1.7 V
Maximum Power Dissipation : 100 mW
Packaging : Bulk
Minimum Operating Temperature : - 55 C
Maximum Baud Rate : 1 Mbps
Current Transfer Ratio : 27 %
Package / Case : PDIP-8

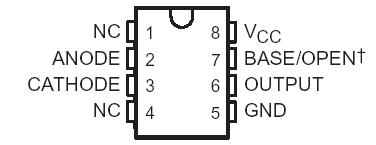

Pinout






Specifications

Supply and output voltage range, V_CC and V_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .0.5 V to 15 V
Reverse input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 V
Emitter-base reverse voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 V
Peak input forward current (pulse duration = 1 ms, 50% duty cycle, see Note 1) . . . . . .. . . . .. .50 mA
Peak transient input forward current (pulse duration 1 s, 300 Hz) . . . . . . . . . . . . . . . . . .. . . . . . .1 A
Average forward input current(see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 mA
Peak output current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 mA
Average output current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 mA
Base current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 mA
Input power dissipation at (or below) 70°C free-air temperature (see Note 3) . . . . . . . . . . . . . .45 mW
Output power dissipation at (or below) 70°C free-air temperature (see Note 4) . . . . . . . . . . .100 mW
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55°C to 125°C .
Operating free-air temperature range, T_A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55°C to 100°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . .. . . . . . .260°C .

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing
HCPL4502	Full Production	RoHS Compliant	$0.75	DIP-B	8	BULK	TBD
HCPL4502S	Full Production	RoHS Compliant	$0.75	SMDIP-B	8	BULK	TBD
HCPL4502SD	Full Production	RoHS Compliant	$0.76	SMDIP-B	8	TAPE REEL	TBD
HCPL4502SDV	Full Production	RoHS Compliant	$0.76	SMDIP-B	8	TAPE REEL	TBD
HCPL4502SV	Full Production	RoHS Compliant	$0.75	SMDIP-B	8	BULK	TBD
HCPL4502V	Full Production	RoHS Compliant	$0.75	DIP-B	8	BULK	TBD
HCPL4502W	Not recommended for new designs	RoHS Compliant	N/A	DIP-B	8	BULK	TBD
HCPL4502WV	Full Production	RoHS Compliant	$0.75	DIP-B	8	BULK	TBD

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Description

These 6N135, 6N136, and HCPL4502 high-speed optocouplers are designed for use in analog or digital interface applications that require high-voltage isolation between the input and output. Applications include line receivers that require high common-mode transient immunity, and analog or logic circuits that require input-to-output electrical isolation.

The 6N135, 6N136, and HCPL4502 optocouplers each consists of a light-emitting diode and an integrated photon detector composed of a photodiode and an open-collector output transistor. Separate connections are provided for the photodiode bias and the transistor-collector output. This feature, which reduces the transistor base-to-collector capacitance, results in speeds up to one hundred times that of a conventional phototransistor optocoupler.

The 6N135 is designed for TTL/CMOS, TTL/LSTTL, and wide-band analog applications. The 6N135, 6N136, and HCPL4502 are designed for high-speed TTL/TTL applications. The HCPL4502 has no base connection.

The 6N135, 6N136, and HCPL4502 optocouplers consist of an AlGaAs LED optically coupled to a high speedphotodetector transistor.A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototransistor optocouplers by reducing the base-collector capacitance of the input transistor.An internal noise shield provides superior common mode rejection of 10kV/µs. An improved package allows superior insulation permitting a 480 V working voltage compared to industry standard of 220 V.

Parameters:

Technical/Catalog Information	HCPL4502
Vendor	Fairchild Optoelectronics Group
Category	Isolators
Isolation Voltage	2500Vrms
Input Type	DC
Output Type	Transistor with Vcc
Current - Output/Channel	8mA
Voltage - Output	20V
Vce Saturation (Max)	-
Current Transfer Ratio (Min)	19% @ 16mA
Mounting Type	Through Hole
Package / Case	8-DIP
Packaging	Tube
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HCPL4502 HCPL4502
