Maximum Continuous Output Current
:
Minimum Operating Temperature
: - 40 C
Packaging
: Tube
Isolation Voltage
: 3750 Vrms
Maximum Propagation Delay Time
: 500 ns
Maximum Forward Diode Voltage
: 1.8 V
Maximum Reverse Diode Voltage
: 5 V
Maximum Forward Diode Current
: 16 mA
Maximum Operating Temperature
: + 100 C
Output Type
: Open Collector
Maximum Power Dissipation
: 295 mW
Package / Case
: DIP-8
Features: • 0.5 A Minimum Peak Output Current
• 15 kV/µs Minimum Common Mode Rejection (CMR) at VCM = 1500 V
• 1.0 V Maximum Low Level Output Voltage (VOL) Eliminates Need for Negative Gate Drive
• ICC = 5 mA Maximum Supply Current
• Under Voltage Lock-Out Protection (UVLO) with Hysteresis
• Wide Operating VCC Range: 15 to 30 Volts
• 500 ns Maximum Switching Speeds
• Industrial Temperature
Range: -40°C to 100°C
• Safety and Regulatory Approval: UL Recognized 2500 Vrms for 1 min. per UL1577 VDE 0884 Approved with VIORM = 630 Vpeak (Option 060 only) CSA ApprovedApplication• Isolated IGBT/MOSFET Gate Drive
• AC and Brushless DC Motor Drives
• Industrial Inverters
• Switch Mode Power Supplies (SMPS)Specifications
DescriptionThe HCPL-3150 consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applica-tions. The high operating voltage range of the output stage pro-vides the drive voltages required by gate controlled devices.
The voltage and current supplied by this optocoupler makes it ideally suited for directly driving IGBTs with ratings up to 1200 V/50 A. For IGBTs with higher ratings, the HCPL-3150 can be used to drive a discrete power stage which drives the IGBT gate.

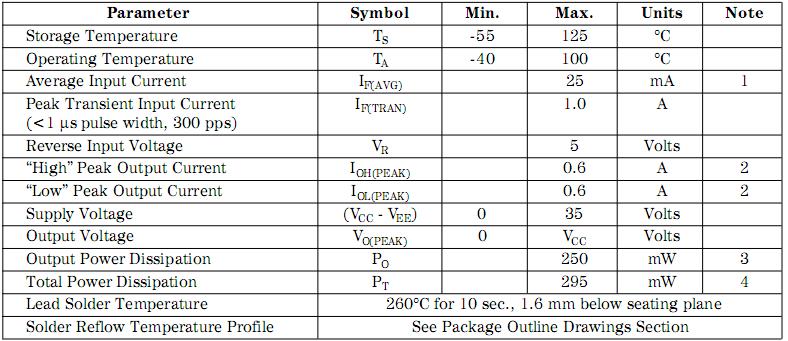

Parameters: Technical/Catalog Information | HCPL-3150 |
Vendor | Avago Technologies US Inc. |
Category | Isolators |
Type | MOSFET Driver |
Mounting Type | Through Hole |
Package / Case | 8-DIP |
Packaging | Tube |
Lead Free Status | Contains Lead |
RoHS Status | RoHS Non-Compliant |
Other Names | HCPL 3150 HCPL3150 516 1125 5 ND 51611255ND 516-1125-5 |
