HCPL-270L060_1222920 Selling Leads, Price trend, HCPL-270L060_1222920 DataSheet download, circuit diagram from SeekIC.com

Features: • Low power consumption• High current transfer ratio• Low input current requirements 0.5 mA• LVTTL/LVCMOS compatible output• Performance guaranteed over temperature 0˚C to +70˚C• Base access allows gain bandwidth adjustment• High output...

See larger image

SeekIC No. : 004359764 Detail

HCPL-270L060_1222920: Features: • Low power consumption• High current transfer ratio• Low input current requirements 0.5 mA• LVTTL/LVCMOS compatible output• Performance guaranteed over tempe...

HCPL-270L060_1222920 Data Sheet

Get Latest Price

Part Number:: HCPL-270L060_1222920
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

HCPL-0201 evaluate
US $1.27 - 1.95 / Piece

High Speed Optocouplers 5MBd 1Ch 1.6mA
HCPL-0201#060 evaluate
US $1.08 - 1.3 / Piece

High Speed Optocouplers 5MBd 1Ch 1.6mA
HCPL-0201#500 evaluate
US $1.01 - 1.22 / Piece

High Speed Optocouplers 5MBd 1Ch 1.6mA

Product Details

Description

Features:

• Low power consumption
• High current transfer ratio
• Low input current requirements 0.5 mA
• LVTTL/LVCMOS compatible output
• Performance guaranteed over temperature 0˚C to +70˚C
• Base access allows gain bandwidth adjustment
• High output current 60 mA
• Safety approval, UL, VDE, CSA (pending)

Application

• Ground isolate most logic families LVTTL/LVCMOS
• Low input current line receiver
• High voltage insulation
• EIA RS-232C line receiver
• Telephone ring detector
• 117 V AC line voltage status indicator low input power dissipation
• Low power systems ground isolation

Pinout

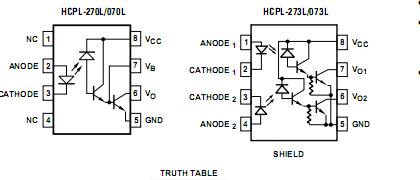

Connection Diagram

Specifications

Parameter	Symbol	Min.	Max.	Units
Storage Temperature	T_S	-55	125
Operating Temperature	T_A	-40	85
Average Forward Input Current	I_F(AVG)		20	mA
Peak Forward Input Current (50% Duty Cycle, 1 ms Pulse Width)	I_F(PEAK)		40	mA
Peak Transient Input Current (< 1 µs Pulse Width, 300 pps)	I_F(TRAN)		1.0	A
Reverse Input Voltage	V_R		5	V
Input Power Dissipation	P_I		35	mW
Output Current (Pin 6)	I_O		60	mW
Emitter Base Reverse Voltage (Pin 5-7)	V_EB		0.5	V
Supply Voltage and Output Voltage	V_CC	-0.5	7	V
Output Power Dissipation	P_O		100	mW
Total Power Dissipation	P_T		135	mW
Lead Solder Temperature (for Through Hole Devices)	260˚C for 10 sec., 1.6 mm below seating plane
Reflow Temperature Profile (for SOIC-8 and Option #300)	See Package Outline Drawings section.

Description

These HCPL-270L060_1222920 high gain series couplers use a Light Emitting Diode and an integrated high gain photodetector to provide extremely high current transfer ratio between input and output. Separate pins for the photodiode and output stage result in LVTTL compatible saturation voltages and high speed operation.

Where desired, the V_CCand VO terminals may be tied together to achieve conventional photo-darlington operation. A base access terminal allows a gain bandwidth adjustment to be made. These HCPL-270L060_1222920optocouplers are for use in LVTTL/LVCMOS or other low power applications. A 400% minimum current transfer ratio is guaranteed over 0 to +70˚C operating range for only 0.5 mA of LED current.
