Current Transfer Ratio
:
Maximum Input Diode Current
:
Packaging
: Tube
Maximum Power Dissipation
: 40 mW
Maximum Operating Temperature
: + 70 C
Minimum Operating Temperature
: 0 C
Maximum Baud Rate
: 10 MBps
Package / Case
: PDIP-8
Maximum Forward Diode Voltage
: 2.7 V
Maximum Reverse Diode Voltage
: 0.95 V
Features: • 1000 V/ms Minimum Common Mode Rejection (CMR) at VCM = 50 V for HCPL-2602 and 3.5 kV/ms Minimum CMR at VCM = 300 V for HCPL-2612
• Line Termination Included No Extra Circuitry Required
• Accepts a Broad Range of Drive Conditions
• LED Protection Minimizes LED Efficiency Degradation
• High Speed: 10 MBd (Limited by Transmission Line in Many Applications)
• Guaranteed AC and DC Performance over Temperature: 0°C to 70°C
• External Base Lead Allows "LED Peaking" and LED Current Adjustment
• Safety Approval UL Recognized 2500 V rms for 1 Minute CSA Approved

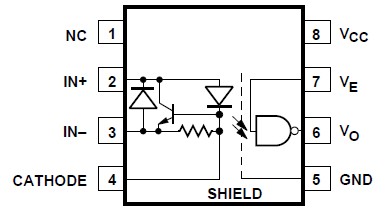

• MIL-STD-1772 Version Available (HCPL-1930/1)Pinout
Specifications
| Parameter |
Symbol |
Min. |
Max. |
Units |
| Storage Temperature |
TS |
-55 |
125 |
°C |
| Operating Temperature |
TA |
-40 |
85 |
°C |
| Forward Input Current |
II |
|
60 |
mA |
| Reverse Input Current |
IIR |
|
60 |
mA |
| Input Current, Pin 4 |
|
-10 |
10 |
mA |
| Supply Voltage (1 Minute Maximum) |
VCC |
|
7 |
V |
Enable Input Voltage (Not to Exceed VCC by
more than 500 mV) |
VE |
|
VCC + 0.5 |
V |
| Output Collector Current |
IO |
|
50 |
mA |
Output Collector Voltage (Selection for Higher
Output Voltages up to 20 V is Available.) |
VO |
|
7 |
V |
| Output Collector Power Dissipation |
PO |
|
40 |
mW |
| Lead Solder Temperature |
TLS |
260°C for 10 sec., 1.6 mm below
seating plane |
| Solder Reflow Temperature Profile |
|
See Package Outline Drawings section |
DescriptionHCPL-2602 is a optically coupled line receiver that combines a GaAsP light emitting diode, an input current regulator and an integrated high gain photo detector. The input regulator serves as a line termination for line receiver applications. HCPL-2602 clamps the line voltage and regulates the LED current so line reflections do not interfere with circuit performance.
The HCPL-2602 regulator allows a typical LED current of 8.5 mA before it starts to shunt excess current. The output of the detector IC is an open collector Schottky clamped transistor. An enable input gates the detector. The internal detector shield provides a guaranteed common mode transient immunity specification of 1000 V/ms.
DC specifications are defined similar to TTL logic. The HCPL-2602 optocoupler ac and dc operational parameters are guaranteed from 0oC to 70oC allowing trouble-free interfacing with digital logic circuits. An input current of 5 mA will sink an eight gate fan-out (TTL) at the output.
HCPL-2602 is useful as line receiver in high noise environments that conventional line receiver cannot tolerate. The higher LED threshold voltage provides improved immunity to differential noise and the internally shielded detector provides orders of magnitude improvement in common mode rejection with little or no sacrifice in speed.
Parameters: | Technical/Catalog Information | HCPL-2602 |
| Vendor | Avago Technologies US Inc. |
| Category | Isolators |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP |
| Isolation Voltage | 1000Vrms |
| Configuration | 1, One Direction |
| Input Type | DC |
| Output Type | Open Collector |
| Data Rate | 10Mbs |
| Current - Output/Channel | 50mA |
| Packaging | Tube |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | HCPL 2602
HCPL2602
516 1146 5 ND
51611465ND
516-1146-5
|
HCPL-2602 Data Sheet
