HCPL-0300

Current Transfer Ratio :
Maximum Input Diode Current :
Minimum Operating Temperature : - 40 C
Packaging : Tube
Package / Case : SOIC-8
Maximum Baud Rate : 8 MBps
Maximum Forward Diode Voltage : 1.5 V
Maximum Reverse Diode Voltage : 3 V
Maximum Power Dissipation : 40 mW
Maximum Operating Temperature : + 85 C


Features:

• Guaranteed Low Thresholds: I_F = 0.5 mA, V_F 1.5 V
• High Speed: Guaranteed 5 MBd over Temperature
• Versatile: Compatible with TTL, LSTTL and CMOS
• Efficient 820 nm AlGaAs LED
• Internal Shield for Guaranteed Common Mode Rejection
• Schottky Clamped, Open Collector Output with Optional Integrated Pull-Up Resistor
• Static and Dynamic Performance Guaranteed from -40°C to 85°C
• Safety Approval UL Recognized -3750 V rms for 1 minute CSA Approved IEC/EN/DIN EN 60747-5-2 Approved with VIORM = 630 V peak (Option 060) Applications
• Ground Loop Elimination
• Computer-Peripheral Interfaces
• Level Shifting
• Microprocessor System Interfaces
• Digital Isolation for A/D, /A Conversion
• RS-232-C Interface
• High Speed, Long Distance Isolated Line Receiver




Application

• Ground Loop Elimination
• Computer-Peripheral Interfaces
• Level Shifting

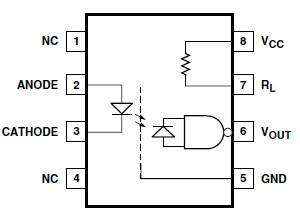

Pinout






Specifications

Storage Temperature, TS .......................................... -55°C to +125°C
Operating Temperature, TA ....................................... . -40°C to +85°C
Lead Solder Temperature, max .......................................260°C for 10 s
(1.6 mm below seating plane)
Average Forward Input Current - IF............................................ 5 mA[2]
Reverse Input Voltage, VR ..............................................................3.0 V
Supply Voltage, VCC............................................................ 0 V to 7.0 V
Pull-Up Resistor Voltage, VRL ........................................... -0.5 V to VCC
Output Collector Current, IO ............................................ -25 to 25 mA
Input Power Dissipation, PI ..................................................... ...10 mW
Output Collector Power Dissipation, PO ................................... .. 40 mW
Output Collector Voltage, VO ..........................................-0.5 V to 18 V
Infrared and Vapor Phase Reflow Temperature
(Option #300) ............................................. .see Fig. 1, Thermal Profile




Description

The HCPL-0300 optocoupler combines an 820 nm AlGaAs photon emitting diode with an integrated high gain photon detector. This combination of Avago designed and manufactured semiconductor devices brings new high performance capabilities to designers of isolated logic and data communication circuits.

The HCPL-0300 new low current, high speed AlGaAs emitter manufactured with a unique diffused junction, has the virtue of fast rise and fall times at low drive currents. These unique characteristics enable this device to be used in an RS-232-C interface ground loop isolation and improved common mode rejection. As a line receiver, it will operate over longer line lengths for a given data rate because of lower IF and VF specifications.

The output of the shielded integrated detector circuit is an open collector Schottky clamped transistor. The shield, which shuns capacitively coupled common mode noise to ground, provides a guaranteed transient immunity specification of 100 V/ms. The HCPL-0300 output circuit includes an optional integrated 1000 ohms pull-out resistor for the open collector. This gives designers the flexibility to use the internal resistor for pull-out to 5 volt logic or to use an external resistor for connection to supply voltages up to 18 V (CMOS logic voltage).

The Electrical and Switching Characteristics of the HCPL-0300 is guaranteed over a temperature of -40 degrees C to 85 degrees C. This enables the user to confidently design a circuit which will operate under a broad range of operating conditions.

Parameters:

Technical/Catalog Information	HCPL-0300
Vendor	Avago Technologies US Inc.
Category	Isolators
Mounting Type	Surface Mount
Package / Case	8-SOIC (3.9mm Width)
Isolation Voltage	3750Vrms
Configuration	1, One Direction
Input Type	DC
Output Type	Open Collector
Data Rate	8Mbs
Current - Output/Channel	25mA
Packaging	Tube
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	HCPL 0300 HCPL0300 516 1067 5 ND 51610675ND 516-1067-5
