HC55180

Features:

• Battery Operation to 100V
• Low Standby Power Consumption of 50mW
• Peak Ringing Amplitude 95V, 5 REN
• Sinusoidal or Trapezoidal Ringing Capability
• Integrated CODEC Ringing Interface
• Integrated MTU DC Characteristics
• Low External Component Count
• Pulse Metering and On Hook Transmission
• Tip Open Ground Start Operation
• Thermal Shutdown with Alarm Indicator
• 28 Lead Surface Mount Packaging
• Dielectric Isolated (DI) High Voltage Design
• HC55180
          - Silent Polarity Reversal
          - 53dB Longitudinal Balance
          - Loopback Test Capability
• HC55181
          - Integrated Battery Switch
          - Silent Polarity Reversal
          - 58/53dB Longitudinal Balance
          - Loopback and Test Access Capability
• HC55182
          - Integrated Battery Switch
          - 58/53dB Longitudinal Balance
          - Loopback and Test Access Capability
• HC55183
          - Integrated Battery Switch
          - 45dB Longitudinal Balance
• HC55184
          - Integrated Battery Switch
          - Silent Polarity Reversal
          - 45dB Longitudinal Balance


Application

• Wireless Local Loop (WLL)
• Digital Added Main Line (DAML)/Pairgain
• Integrated Services Digital Network (ISDN)
• Small Office Home Office (SOHO) PBX
• Cable/Computer Telephony

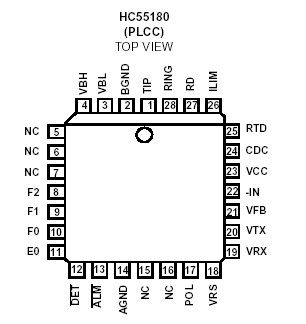

Pinout




Specifications

Maximum Supply Voltages
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +7V
VCC - VBAT (180, 181, 182) . . . . . . . . . . . . . . . . . . . . . . . . . 110V
VCC - VBAT (183, 184) . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . 85V
Uncommitted Switch Voltage . . . . . . . . . . . . . . . . . . . . . . . -110V
ESD (Human Body Model). . . . . . . . . . . . . . . . . . . . . . . . . . . 500V


Description

The RSLIC18 family of ringing subscriber line interface circuits (RSLIC) supports analog Plain Old Telephone Service (POTS) in short and medium loop length, wireless and wireline applications. Ideally suited for remote subscriber units, this family of products offers flexibility to designers with high ringing voltage and low power consumption system requirements.

The RSLIC18 family operates to 100V which translates directly to the amount of ringing voltage supplied to the end subscriber. With the high operating voltage, subscriber loop lengths can be extended to 500W (i.e., 5,000 feet) and beyond.

Other key features across the RSLIC18  family include: low power consumption, ringing using sinusoidal or trapezoidal waveforms, robust auto-detection mechanisms for when subscribers go on or off hook, and minimal external discrete application components. Integrated test access features are also offered on selected products to support loopback testing as well as line measurement tests.

There are five product offerings in the RSLIC18 family: HC55180, HC55181, HC55182, HC55183 and HC55184.

The architecture for this RSLIC18  family is based on a voltage feed amplifier design using low fixed loop gains to achieve high analog performance with low susceptibility to system induced noise.
