HC-5504DLC

Features:

• Pin for Pin Replacement for the HC-5504
• Capable of +5V or +12V (VB+) Operation
• Monolithic Integrated Device
• DI High Voltage Process
• Compatible With Worldwide PBX Performance Requirements
• Controlled Supply of Battery Feed Current for Short Loops (41mA)
• Internal Ring Relay Driver
• Allows Interfacing With Negative Superimposed Ringing Systems
• Low Power Consumption During Standby
• Switch Hook Ground Key and Ring Trip Detection Functions
• Selective Denial of Power to Subscriber Loops


Application

• Solid State Line Interface Circuit for Analog and Digital PBX Systems
• Direct Inward Dial (DID) Trunks
• Voice Messaging PBXs
• Allows Multi-Phone Operation

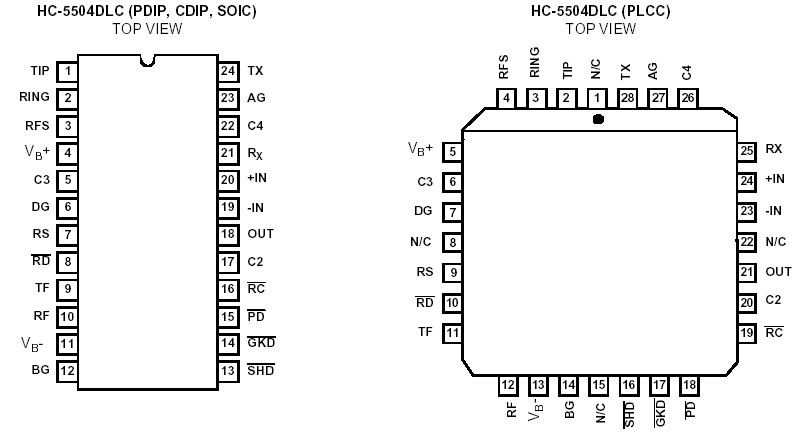

Pinout




Specifications

Maximum Continuous Supply Voltages
(VB-) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -60 to +0.5 V
(VB+) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . -0.5 to +15 V
(VB+ - VB-) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . +75V
Relay Drive Voltage (VRD) . . . . . . . . . . . . . . . . . . . . . .-0.5 to +15V
Junction Temperature Ceramic . . . . . . . . . . . . . . . . . . . . . . +175
Junction Temperature Plastic. . . . . . . . . . . . . . . . . . . . . . . . +150
Lead Temperature (Soldering 10 Sec.) . . . . . . . . . . . . . . . . +300


Description

The Intersil HC-5504DLC SLIC incorporates many of the BORSHT functions on a single IC chip. This includes DC battery feed, a ring relay driver, supervisory and hybrid functions. This device is designed to maintain transmission performance in the presence of externally induced longitudinal currents. Using the unique Intersil dielectric isolation process, the SLIC can operate directly with a wide range of station battery voltages.

The HC-5504DLC SLIC also provides selective denial of power. If the PBX system becomes overloaded during an emergency, the SLIC will provide system protection by denying power to selected subscriber loops.

The Intersil HC-5504DLC SLIC is ideally suited for the design of new digital PBX systems by eliminating bulky hybrid transformers.
