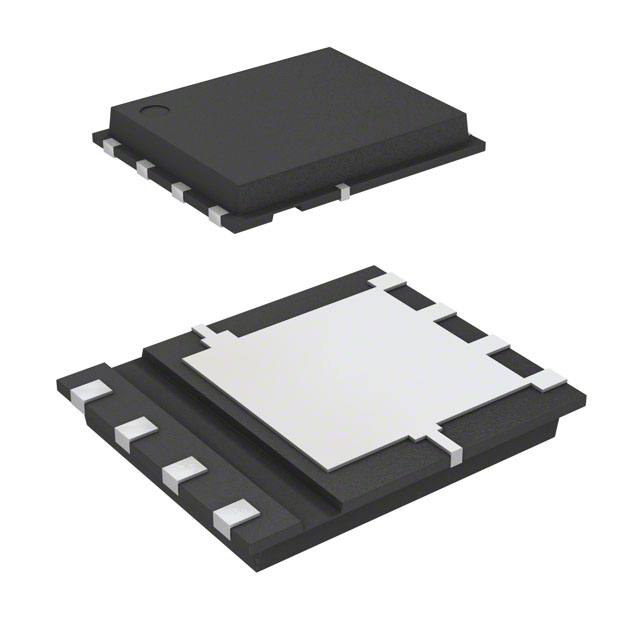

HAT2244WP-EL-E: MOSFET N-CH 80V 30A WPAK

HAT2244WP-EL-E Data Sheet

US $ .69~.69 / Piece | Get Latest Price

Part Number:: HAT2244WP-EL-E
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~2500

Unit Price
$.69

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Series:	-	Manufacturer:	Renesas Electronics America
FET Type:	MOSFET N-Channel, Metal Oxide	Transistor Type:	-
Current - Collector (Ic) (Max):	-	FET Feature:	Logic Level Gate
Continuous Drain Current :	15 A	Drain to Source Voltage (Vdss):	80V
Voltage - Collector Emitter Breakdown (Max):	-	Current - Continuous Drain (Id) @ 25° C:	30A
Vce Saturation (Max) @ Ib, Ic:	-	Current - Collector Cutoff (Max):	-
Rds On (Max) @ Id, Vgs:	12.5 mOhm @ 15A, 10V	DC Current Gain (hFE) (Min) @ Ic, Vce:	-
Vgs(th) (Max) @ Id:	-	Gate Charge (Qg) @ Vgs:	60nC @ 10V
Frequency - Transition:	-	Input Capacitance (Ciss) @ Vds:	3250pF @ 10V
Power - Max:	25W	Mounting Type:	Surface Mount
Package / Case:	8-WDFN Exposed Pad	Supplier Device Package:	8-WPAK

Description

Series: -
FET Type: MOSFET N-Channel, Metal Oxide
Transistor Type: -
Current - Collector (Ic) (Max): -
FET Feature: Logic Level Gate
Voltage - Collector Emitter Breakdown (Max): -
Vce Saturation (Max) @ Ib, Ic: -
Current - Collector Cutoff (Max): -
DC Current Gain (hFE) (Min) @ Ic, Vce: -
Frequency - Transition: -
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)
Power - Max: 25W
Drain to Source Voltage (Vdss): 80V
Current - Continuous Drain (Id) @ 25° C: 30A
Vgs(th) (Max) @ Id: -
Gate Charge (Qg) @ Vgs: 60nC @ 10V
Manufacturer: Renesas Electronics America
Package / Case: 8-WDFN Exposed Pad
Supplier Device Package: 8-WPAK
Rds On (Max) @ Id, Vgs: 12.5 mOhm @ 15A, 10V
Input Capacitance (Ciss) @ Vds: 3250pF @ 10V

Parameters:

Technical/Catalog Information	HAT2244WP-EL-E
Vendor	Renesas Technology America
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25° C	30A
Rds On (Max) @ Id, Vgs	12.5 mOhm @ 15A, 10V
Input Capacitance (Ciss) @ Vds	3250pF @ 10V
Power - Max	25W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	60nC @ 10V
Package / Case	WPAK
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HAT2244WP EL E HAT2244WPELE
