HA13631T

Features: · Corresponds to both of sensor motor and sensorless motor· All direct PWM drive· Low on resistance· Low power dissipation· Small thin surface mount packagePinoutSpecifications Item Symbol Rating Unit Note Control block supply voltage Vss 7 V 1 SPN supply voltage Vspn...

product image

HA13631T Picture
See larger image
SeekIC No. : 004358086 Detail

HA13631T: Features: · Corresponds to both of sensor motor and sensorless motor· All direct PWM drive· Low on resistance· Low power dissipation· Small thin surface mount packagePinoutSpecifications Item ...

HA13631T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HA13631T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Corresponds to both of sensor motor and sensorless motor
·  All direct PWM drive
·  Low on resistance
·  Low power dissipation
·  Small thin surface mount package


Pinout

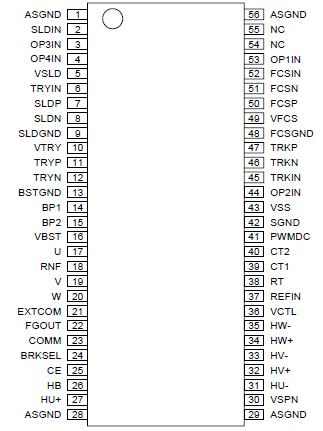

Connection Diagram


Specifications

Item Symbol Rating Unit Note
Control block supply voltage Vss 7 V 1
SPN supply voltage Vspn 7 V 1
FCS & TRK supply voltage Vfcs 9.5 V 1
SLD supply voltage Vsld 7 V 1
TRY supply voltage Vtry 9.5 V 1
Input voltage Vin 0 to Vss V 2
SPN output current Iospn 1.5 (2.5) A 3
FCS output current Iofcs 0.75 (1.5) A 3
TRK output current Iotrk 0.75 (1.5) A 3
SLD output current Iosld 1.0 (1.5) A 3
TRY output current Iotry 0.75 (1.5) A 3
Power dissipation Pt 2.5 W 4
Junction temperature Tj 150 1
Storage temperature range Tstg 55 to +125
Note: 1. Operating range is shown below.
Vss = 4.5 to 5.5 V, Vspn = 4.25 to 5.75 V, Vfcs = 4.25 to 8.5 V, Vsld = 4.25 to 5.75 V, Vtry = 4.25 to 8.5 V, Tjopr = 20 to +135°C
When operating with Vfcs > Vss, it is necessary to set Vtry = Vfcs. Also, settings must be made that satisfy the ollowing condition: Vtry + Vss Vsld 8.5 V
2. Applied to analog and logic input.
3. Values in parentheses are peak values. ASO (Area of Safety Operation) is shown below.


Description

The HA13631T is combination of Spindle, Forcus, Tracking, Slide, Tray designed for CD-ROM and have followingfunctions and features.
