HA-4741_883

Features: • This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.• Slew Rate . . . . . . . . . . . . . . . . . . . .. . . . . 0.9V/s (Min)• Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . 2.5MHz (Min)R...

product image

HA-4741_883 Picture
See larger image
SeekIC No. : 004358332 Detail

HA-4741_883: Features: • This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.• Slew Rate . . . . . . . . . . . . . . . . . . . .. . ...

HA-4741_883 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HA-4741_883
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
• Slew Rate . . . . . . . . . . . . . . . . . . . .. . . . . 0.9V/s (Min)
• Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . 2.5MHz (Min)
• Input Offset Voltage. . . . . . . . . . . . . . . . . . . 3mV (Max)
• Input Bias Current . . . . . . . . . . . . . . . .. . . 200nA (Max)
• Input Voltage Noise . . . . . . . . . . . . . . .. 9nV/Hz (Typ)
• No Crossover Distortion
• Standard Quad Pinout


Application

• Universal Active Filters
• D3 Communications Filters
• Audio Amplifiers
• Battery-Powered Equipment


Pinout

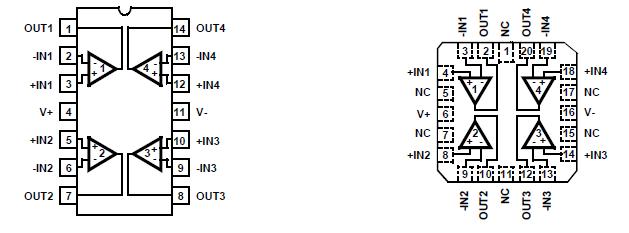

Connection Diagram


Specifications

Voltage Between V+ and V- Terminals . . . . . . . . . . . .. . 40V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . .  . . . 15V
Voltage at Either Input Terminal . . . . . . . . . . V+ to VOutput
Current . . . . . . . . Indefinite (One Amplifier Shorted to GND)
Junction Temperature (TJ) . . . . . . . . . . . . . . . . .  . . . +175
Storage Temperature Range . . . . . . . . . ..  . -65 to +150
ESD Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <2000V
Lead Temperature (Soldering 10s). . . . . . . . . . . . .. . +300


Description

The Intersil HA-4741/883, which contains four amplifiers on a monolithic chip, provides a new measure of performance for general purpose operational amplifiers. Each amplifier in the HA-4741/883 has operating specifications that equal or exceed those of the 741-type amplifier in all categories of performance.

The HA-4741/883 is well suited to applications requiring accurate signal processing by virtue of its low values of input offset voltage (3mV max), input bias current (200nA max) and input voltage noise (9nV/Hz typ at 1kHz). The 2.5MHz bandwidth, coupled with high open loop gain, allow the HA-4741/883 to be used in designs requiring amplifiers of wideband signals, such as audio amplifiers. Audio application is further enhanced by the HA-4741/883's negligible output crossover distortion. These excellent dynamic characteristics also make the HA- 4741/883 ideal for a wide range of active filter designs. Performance integrity of multi-channel designs is assured by a high level of amplifier-to-amplifier isolation (66dB at 10kHz).

A wide range of supply voltages (±2V to ±20V) can be used to power the HA-4741/883, making it compatible with almost any system including battery-powered equipment.
