HA-2640/883

• This Circuit is Processed in Accordance to MIL-STD- 883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
• Output Voltage Swing . . . . . . . . . . . . . . . . . . ±35V (Min)
• Supply Voltage . . . . . . . . . . . . . . . . . ±10V to ±40V (Min)
• Slew Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . 3V/ms (Min)
• Common Mode Input Voltage Swing . . . . . . ±35V (Min)
• Offset Current. . . . . . . . . . . . . . . . . . . . . . . . 12nA (Max)
• Unity Gain Bandwidth . . . . . . . . . . . . . . . . . 5MHz (Typ)
• Output Overload Protection

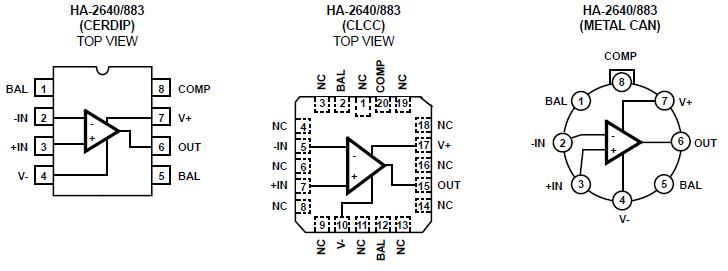

Absolute Maximum Ratings Thermal Information
Voltage Between V+ and V- Terminals . . . . . . . . . . . . . . . . 100V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . 37V
Output Current . . . . . . . . . . . . . . . . .Full Short Circuit Protection
Output Short Circuit Duration . . . . . . . . . . . . . . . . . . . 5 Seconds
Junction Temperature (T_J) . . . . . . . . . . . . . . .  . . . . . . . . +175^oC
Storage Temperature Range . . . . . . . . . . . .. . . -65^oC to +150^oC
ESD Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <2000V
Lead Temperature (Soldering 10s) . . . . . . . . . . . . .  . . . . +300^oC
Thermal Resistance                                          _{JA                    JC}
CerDIP Package . . . . . . . . . . . . .  . . . . .. . . . . . 115^oC/W 28^oC/W
Ceramic LCC Package . . . . . . . . . . .  . . . . . . .. . . 65^oC/W 15oC/W
Metal Can Package . . . . . . . . . . . . .  . . . . .. . . . 155^oC/W 67^oC/W
Package Power Dissipation Limit at +75^oC for T_J +175^oC
CerDIP Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 870mW
Ceramic LCC Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.54W
Metal Can Package . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . 645mW
Package Power Dissipation Derating Factor Above +75^oC
CerDIP Package . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 8.7mW/^oC
Ceramic LCC Package . . . . . . . . . . . . . . . . . . . . . . . . 15.4mW/^oC
Metal Can Package . . . . . . . . . . . . . . . . . . . . . .  . . . . . 6.5mW/^oC
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
Operating Conditions
Operating Temperature Range. . . . . . . . . . . . . -55^oC to +125^oC
Operating Supply Voltage . . . . . . . . . . . . . .  . . . . ±10V to ±40V
V_INCM 1/2 (V+ - V-)
R_L 500W

HA-2640/883 monolithic operational amplifier is designed to deliver unprecedented dynamic specification for a high voltage internally compensated device. This dielectrically isolated device offer very low values for offset voltage and offset current coupled with large output voltage swing and common mode input voltage.

For maximum reliability, the HA-2640/883 offers unconditional output overload protection through output short circuit current limiting. This circuitry will limit the output to typically ±25mA output drive current.

These HA-2640/883 amplifiers deliver ±35V common mode input voltage swing, ±35V output voltage swing, and up to ±40V supply range for use in such designs as regulators, power supplies, and industrial control systems. The 5MHz typical gain-bandwidth product and 5V/ms slew rate (typ) make these devices excellent components for high performance signal conditioning applications. To insure compliance, all devices are 100% tested for slew rate, rise/fall time and overshoot. Outstanding input and output voltage swings coupled with a low 5nA offset current (typ), make these amplifiers excellent components for resolver excitation designs.
