HA-2602/883

• This Circuit is Processed in Accordance to MIL-STD- 883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
• High Input Impedance (HA-2600/883). . . . 100M (Min)
                                                                      500M (Typ)
• High Slew Rate. . . . . . . . . . . . . . . . . . . . . . . 4V/s (Min)
                                                                        7V/s (Typ)
• Low Input Bias Current (HA-2600/883). . .  . 10nA (Max)
                                                                           1nA (Typ)
• Low Input Offset Current (HA-2600/883) . . . 4mV (Max)
• Wide Unity Gain Bandwidth . . . . . . . . . . . 12MHz (Typ)
• Output Short Circuit Protection

Absolute Maximum Ratings
Voltage Between V+ and V- Terminals . . . . . . . . . . . . . . . . . . 40V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12V
Voltage at Either Input Terminal . . . . . . . . . . . . . . . . V+ to VPeak
Output Current . . . . . . . . . . . . . . .Full Short Circuit Protection
Junction Temperature (T_J) . . . . . . . . . . . . . . . . . . . . . . . . . +175^oC
Storage Temperature Range . . . . . . . . . . . . . . . . -65^oC to +150^oC
ESD Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <2000V
Lead Temperature (Soldering 10s) . . . . . . . . . . . . .  . . . . . +300^oC
Thermal Information
Thermal Resistance _{JA JC}
CerDIP Package . . . . . . . . . . . . . . . .  . .  . .  . . . . 115^oC/W 28^oC/W
Metal Can Package . . . . . . . . . . . . . . . .  . .  . . . . 160^oC/W 75^oC/W
Package Power Dissipation Limit at +75^oC for T_J +175^oC
CerDIP Package . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . 870mW
Metal Can Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 625mW
Package Power Dissipation Derating Factor Above +75oC
CersDIP Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.7mW/^oC
Metal Can Package . . . . . . . . . . . . . . . . . . . . . . .  .. . . . . 6.3mW/^oC

CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

Operating Conditions
Operating Temperature Range. . . . . . . . . . . . . . . . -55^oC to +125^oC
Operating Supply Voltage . . . . . . . . . . . . . . . . . . .. . . . . . . . . . ±15V
V_INCM 1/2 (V+ - V-)
R_L 2k

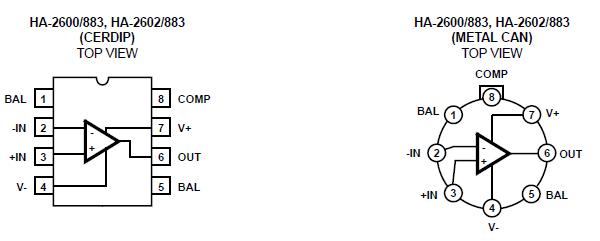

HA-2600/883 and HA-2602/883 are internally compensated bipolar operational amplifiers that feature very high input impedance coupled with wideband AC performance. The high resistance of the input stage is complemented by low offset voltage (4mV max at +25oC for HA-2600/883) and low bias and offset current (10nA max at +25oC for HA-2600/ 883) to facilitate accurate signal processing. Offset voltage can be reduced further by means of an external nulling potentiometer. The 4V/s minimum slew rate at +25oC and the minimum open loop gain of 100kV/V at +25^oC enables the HA-2600/883 to perform high gain amplification of fast, wideband signals. These dynamic characteristics of HA-2600/883 and HA-2602/883, coupled with fast settling times, make these amplifiers ideally suited to pulse amplification designs as well as high frequency or video applications. The frequency response of the amplifier can be tailored to exact design requirements by means of an external bandwidth control capacitor. Other high performance designs of HA-2600/883 and HA-2602/883 such as high gain, low distortion audio amplifiers, high-Q and wideband active filters and high speed comparators, are excellent uses of this part.
