HA-2546

Features: • High Speed Voltage Output . . . . . . . . . . . . . . . . 300V/s• Low Multiplication error . . . . . . . . . . . . . . . . . . . . . .1.6%• Input Bias Currents. . . . . . . . . . . . . . . . . . . . . .. . . 1.2A• Signal Input Feedthrough . . . . . . . . . . . ....

product image

HA-2546 Picture
See larger image
SeekIC No. : 004358282 Detail

HA-2546: Features: • High Speed Voltage Output . . . . . . . . . . . . . . . . 300V/s• Low Multiplication error . . . . . . . . . . . . . . . . . . . . . .1.6%• Input Bias Currents. . . . ....

HA-2546 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HA-2546
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Speed Voltage Output . . . . . . . . . . . . . . . . 300V/s
• Low Multiplication error . . . . . . . . . . . . . . . . . . . . . .1.6%
• Input Bias Currents. . . . . . . . . . . . . . . . . . . . . .. . . 1.2A
• Signal Input Feedthrough . . . . . . . . . . . . . . . .. . . . -52dB
• Wide Signal Bandwidth . . . . . . . . . . . . . . . . . . . . . 30MHz
• Wide Control Bandwidth. . . . . . . . . . . . . . .  . . . . . 17MHz
• Gain Flatness to 5MHz. . . . . . . . . . . . . . . . . . . . . . 0.10dB


Application

• Military Avionics
• Missile Guidance Systems
• Medical Imaging Displays
• Video Mixers
• Sonar AGC Processors
• Radar Signal Conditioning
• Voltage Controlled Amplifier
• Vector Generator

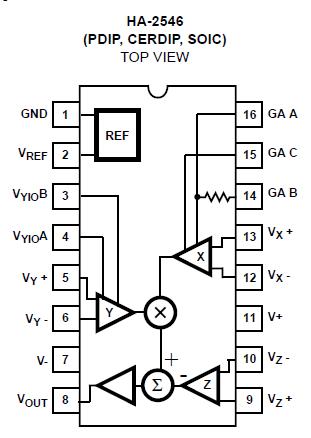

Pinout

Connection Diagram


Specifications

Voltage Between V+ and V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V
Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±60mA


Description

The HA-2546 is a monolithic, high speed, two quadrant, analog multiplier constructed in the Intersil Dielectrically Isolated High Frequency Process. The HA-2546 has a voltage output with a 30MHz signal bandwidth, 300V/s slew rate and a 17MHz control bandwidth. High bandwidth and slew rate make this part an ideal component for use in video systems. The suitability for precision video applications is demonstrated further by the 0.1dB gain flatness to 5MHz, 1.6% multiplication error, -52dB feedthrough and differential inputs with 1.2A bias currents. It also has low differential gain (0.1%) and phase (0.1 degree) errors.

The HA-2546 is well suited for AGC circuits as well as mixer applications for sonar, radar, and medical imaging equipment. The voltage output simplifies many designs by eliminating the current to voltage conversion stage required for current output multipliers. For MIL-STD-883 compliant product, consult the HA-2546/883 datasheet.
