Features: • This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
• Wide Unity Gain Bandwidth . . . . . . . . . . . 45MHz (Min)
• High Slew Rate. . . . . . . . . . . . . . . . . . . . 100V/s (Min)
• Low Supply Current. . . . . . . . . . . . . . . . . . 12mA (Max)
• Differential Gain Error . . . . . . . . . . . . . . . 0.04dB (Max)
• Differential Phase Error. . . . . . . . . . . . 0.11 Deg. (Max)
• Gain Flatness at 3.58MHz or 4.43MHz . .. 0.15dB (Max)
• Fast Settling Time (10V to 0.1%). . . . . . . . 120ns (Typ)Application• Video Systems
• Video Test Equipment
• Radar Displays
• Imaging Systems
• Pulse Amplifiers
• Signal Conditioning Circuits

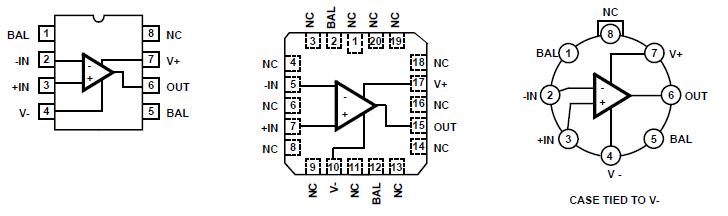

• Data Acquisition SystemsPinout
SpecificationsVoltage Between V+ and V- Terminals . . . . . . . . . . . . . . . . . . . 35V
Differential Input Voltage (Note 2) . . . . . . . . . . . . . . . . . . . . . . . 6V
Voltage at Either Input Terminal . . . . . . . . . . . . . . . . . V+ to VPeak
Output Current (< 10% Duty Cycle) . . . . . . . . . . .. .. .. . . . . .40mA
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . . . . . . +175
Storage Temperature Range . . . . . . . . . . . . . . . . . -65 to +150
ESD Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <2000V
Lead Temperature (Soldering 10s) . . . . . . . . . . . . . . . . . . . +300DescriptionThe HA-2544/883 is a fast, unity gain stable, monolithic op amp designed to meet the needs required for accurate reproduction of video or high speed signals. It offers high voltage gain (3.5kV/V min, 6kV/V typ), wide unity gain bandwidth of 45MHz minimum and phase margin of 65 degrees (open loop). Built from high quality Dielectric Isolation, the HA-2544/883 is another addition to the Intersil series of high speed, wideband op amps, and offers true video performance combined with the versatility of an op amp.
The primary features of the HA-2544/883, include wide bandwidth, 150V/s (typ) slew rate, < 0.04dB differential gain error, < 0.11 degrees differential phase error and gain flatness of just 0.15dB at 3.58MHz and 4.43MHz, therefore proving to be sufficient for video amplification. High performance and low power requirements are met with a supply current of only 10mA typically and 12mA over the full temperature range.
Uses of the HA-2544/883 range from video test equipment guidance systems, radar displays and other precise imaging systems where stringent gain and phase requirements have previously been met with costly hybrids and discrete circuitry. The HA-2544/883 will also be used in non-video systems requiring high speed signal conditioning such as data acquisition systems, medical electronics, specialized instrumentation and communication systems.
HA-2544_883 Data Sheet
