Features: • Unity Gain Bandwidth. . . . . . . . . . . . . . . . . 40MHz
• High Slew Rate. . . . . . . . . . . . . . . . .. . . . 250V/s
• Low Offset Voltage . . . . . . . . . . . . . .. . . . . 0.8mV
• Fast Settling Time (0.1%) . . . . . . . . . . . . . . 90ns
• Power Bandwidth . . . . . . . . . . . . . . . . . . . . 4MHz
• Output Voltage Swing (Min) . . . . . . . . . . . . ±10V
• Unity Gain Stability
• Monolithic Bipolar Dielectric Isolation ConstructionApplication• Pulse and Video Amplifiers
• Wideband Amplifiers
• High Speed Sample-Hold Circuits
• Fast, Precise D/A Converters

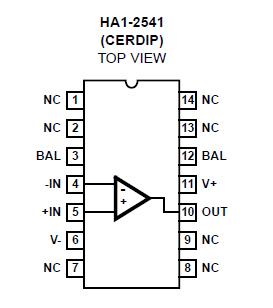

• High Speed A/D Input BufferPinout
SpecificationsVoltage Between V+ and V- Terminals. . . . . . . . . . . . . . . . . . . 35V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V
Peak Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA
Continuous Output Current . . . . . . . . . . . . . . . . . . . . . . . 28mARMSDescriptionThe HA-2541 is the first unity gain stable monolithic operational amplifier to achieve 40MHz unity gain bandwidth. A major addition to the Intersil series of high speed, wideband op amps, the HA-2541 is designed for video and pulse applications requiring stable amplifier response at low closed loop gains.
The uniqueness of the HA-2541 is that its slew rate and bandwidth characteristics are specified at unity gain. Historically, high slew rate, wide bandwidth and unity gain stability have been incompatible features for a monolithic operational amplifier. But features such as 250V/s slew rate and 40MHz unity gain bandwidth clearly show that this is not the case for the HA-2541. These features, along with 90ns settling time to 0.1%, make this product an excellent choice for high speed data acquisition systems. MIL-STD-883 product and data sheets are available upon request, Intersil AnswerFAX (407-724-7800) document #3698.
For further application suggestions on the HA-2541, please refer to Application Note AN550 (Using the HA-2541), and Application Note AN556 (Thermal Safe Operating Areas for High Current Operational Amplifiers), Intersil AnswerFAX (407-724-7800) document #9550 and 9556. Also see 'Applications' in this data sheet.
HA-2541 Data Sheet
