HA-2502/883

• This Circuit is Processed in Accordance to MIL-STD- 883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
• High Slew Rate (HA-2500/883) . . . . . . . . . 25V/s (Min)
                                                                      30V/s (Typ)
• Wide Power Bandwidth (HA-2500/883). . . 350kHz (Min)
• High Input Impedance (HA-2500/883). . . . . 25M (Min)
                                                                        50M (Typ)
• Low Offset Current (HA-2500/883) . . . . . . . 25nA (Max)
                                                                         10nA (Typ)
• Low Quiescent Current . . . . . . . . . . . . . . . . . 6mA (Max)
• Fast Settling Time (0.1% of 10V Step) . . . . 330ns (Typ)
• High Gain Bandwidth Product . . . . . . . . . 12MHz (Typ)
• Internally Compensated For Unity Gain Stability

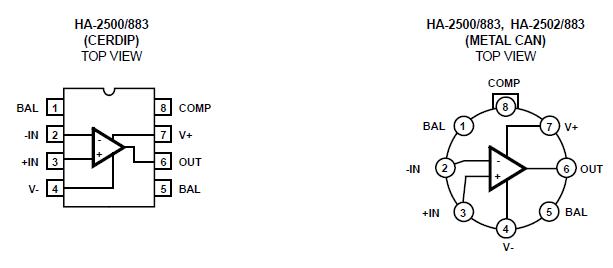

Absolute Maximum Ratings Thermal Information
Voltage Between V+ and V- Terminals . . . . . . . . . . . . . 40V
Differential Input Voltage. . . . . . . . . . . . . . . . . . . . . . . . 15V
Voltage at Either Input Terminal . . . . . . . . . . . . . . V+ to V-
Peak Output Current . . . . . . . . . . . . . . . . . . . .. . . . . .50mA
ESD Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <2000V
Operating Conditions
Temperature Range . . . . . . . . . . . . . . . . . . -55^oC to 125^oC
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±15V
V_INCM 1/2 (V+ - V-)
R_L 2k
Thermal Resistance (Typical, Note 1) _{JA JC}
CERDIP Package . . . . . . . . . . . . . . . . . . 115oC/W 28^oC/W
Metal Can Package . . . . . . . . . . . . . . .. . 160^oC/W 75^oC/W
Package Power Dissipation Limit at 75^oC for TJ 175^oC
CERDIP Package . . . . . . . . . . . . . . . . . . . .. . . . . . . 870mW
Metal Can Package . . . . . . . . . . . . . . . . . . . . . . . . 625mW
Package Power Dissipation Derating Factor Above 75^oC
CERDIP Package . . . . . . . . . . . . . . . . . . . . . . . .8.7mW/^oC
Metal Can Package . . . . . . . . . . . . . . . . . . . . . .6.3mW/^oC
Maximum Junction Temperature . . . . . . . . . . . . .. . . 175^oC
Maximum Storage Temperature Range . . .-65^oC to 150^oC
Maximum Lead Temperature (Soldering 10s) . . . . . . 300^oC
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
NOTE:
1. JA is measured with the component mounted on an evaluation PC board in free air.

HA-2500/883 and HA-2502/883 comprise a series of monolithic operational amplifiers whose designs are optimized to deliver excellent slew rate, bandwidth, and settling time specifications. The outstanding dynamic features of this internally compensated device are complemented with low offset voltage and offset current.

These HA-2500/883 and HA-2502/883 dielectrically isolated amplifiers are ideally suited for applications such as data acquisition, RF, video, and pulse conditioning circuits. Guaranteed slew rates of ±25V/s minimum (HA-2500/883) and ±20V/s minimum (HA-2502/883) make these devices excellent components in fast, accurate data acquisition and pulse amplification designs. To insure compliance, all devices are 100% tested for AC performance characteristics over the full temperature limits.

A typical 12MHz gain bandwidth product and 500kHz full power bandwidth make HA-2500/883 and HA-2502/883 well suited to RF and video applications. With guaranteed offset voltages of 5mV (HA-2500/883) and 8mV (HA-2502/883) plus external offset adjust flexibility and low offset current, these amplifiers are particularly useful components in signal conditioning designs.
