H8/3437 Series

Features: • Two-way register configurationSixteen 8-bit general registers, or Eight 16-bit general registers• Instruction set with 57 basic instructions, including: Multiply and divide instructionsPowerful bit-manipulation instructions• Eight addre...

product image

H8/3437 Series Picture
See larger image
SeekIC No. : 004357919 Detail

H8/3437 Series: Features: • Two-way register configurationSixteen 8-bit general registers, or Eight 16-bit general registers• Instruction set with 57 basic instructions, including:ᣣ...

H8/3437 Series Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
H8/3437 Series
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•  Two-way register configuration
 Sixteen 8-bit general registers, or
 Eight 16-bit general registers
•  Instruction set with 57 basic instructions, including:
 Multiply and divide instructions
 Powerful bit-manipulation instructions
•  Eight addressing modes
 Register direct (Rn)
 Register indirect (@Rn)
 Register indirect with displacement (@(d:16, Rn))
 Register indirect with post-increment or pre-decrement (@Rn+ or @Rn)
 Absolute address (@aa:8 or @aa:16)
 Immediate (#xx:8 or #xx:16)
 PC-relative (@(d:8, PC))
 Memory indirect (@@aa:8)
•  Maximum 64-kbyte address space
•  High-speed operation
 All frequently-used instructions are executed in two to four states
•  Maximum clock rate (ø clock): 16 MHz at 5 V, 12 MHz at 4 V or 10 MHz at 3 V
  8- or 16-bit register-register add or subtract: 125 ns (16 MHz), 167 ns (12 MHz), 200 ns (10 MHz)
  8 * 8-bit multiply: 875 ns (16 MHz), 1167 ns (12 MHz), 1400 ns (10 MHz)
  16 ÷ 8-bit divide: 875 ns (16 MHz), 1167 ns (12 MHz), 1400 ns (10 MHz)
•  Power-down mode
  SLEEP instruction


Pinout

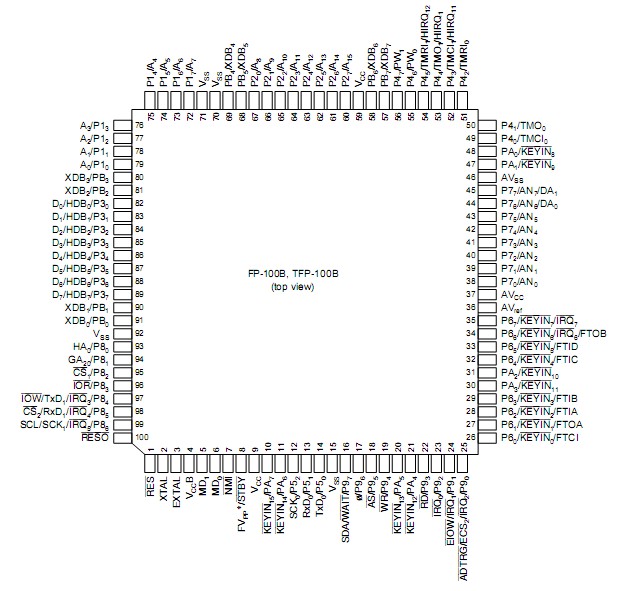

Connection Diagram


Specifications

Item
Symbol
Rating
Unit
Supply voltage
VCC
0.3 to +7.0
V
I/O buffer supply voltage
VCCB
0.3 to +7.0
V
Flash memory programming
voltage (Dual-power-supply
F-ZTAT™ version)
FVPP
0.3 to +13.0
V
Programming voltage
VPP
0.3 to +13.5
V
Input voltage

 Pins other than
ports 7, MD1, P86,
P97, PA7 to PA4
Vin
0.3 to VCC + 0.3
V
P86, P97,
PA7 to PA4
Vin
0.3 to VCCB + 0.3
V
Port 7
Vin
0.3 to AVCC + 0.3
V
MD1
Vin
Dual-power-supply F-ZTAT version:
0.3 to +13.0
Other versions: 0.3 to VCC + 0.3
V
Reference supply voltage
AVref
0.3 to AVCC + 0.3
V
Analog supply voltage
AVCC
0.3 to +7.0
V
Analog input voltage
VAN
0.3 to AVCC + 0.3
V
Operating temperature
Topr
Regular specifications: 20 to +75
˚C

Wide-range specifications: 40 to +85
˚C
Storage temperature
Tstg
55 to +125
˚C



Caution: Exceeding the absolute maximum ratings shown in table 23.1 can permanently destroy the chip.*

Note: * FVPP must not exceed 13 V and VPP must not exceed 13.5 V, including allowances for peak overshoot. For the dual-power-supply F-ZTAT version, MD1 must not exceed 13 V, including an allowance for peak overshoot.




Description

All the H8/3437 Series general registers can be used as both data registers and address registers. When used as address registers, the general registers are accessed as 16-bit registers (R0 to R7). When used as data registers,H8/3437 Series can be accessed as 16-bit registers, or the high and low bytes can be accessed separately as 8-bit registers (R0H to R7H and R0L to R7L). R7 also functions as the stack pointer, used implicitly by hardware in processing interrupts and subroutine calls. In assembly-language coding, R7 can also be denoted by the letters SP. As indicated in figure 2.2, R7 (SP) points to the top of the stack.
