H-1000L: LED RED CLEAR 5MM HIGH BRIGHT

H-1000L Data Sheet

US $ .61~.61 / Piece | Get Latest Price

Part Number:: H-1000L
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~200

Unit Price
$.61

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

H-10 evaluate
US $17.14 - 17.14 / Piece

TERM BLOCK HIGH CURRENT 10CIRC
H-100 evaluate
Soldering Tools IRONHOLDER

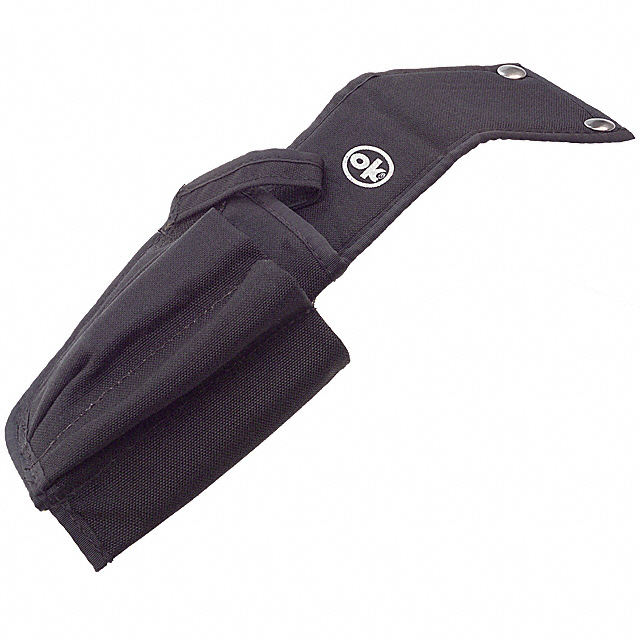

H-1000 evaluate
US $29.01 - 29.01 / Piece

ACCY TOOL POUCH CORDURA WTR RES

Product Details

Quick Details

Series:	-	Manufacturer:	Stanley Electric Co
Color:	Red	Millicandela Rating:	1000mcd
Voltage - Forward (Vf) Typ:	1.8V	Current - Test:	20mA
Wavelength - Dominant:	647nm	Wavelength - Peak:	660nm
Viewing Angle:	10°	Lens Type:	Clear
Package / Case :	Micro	Lens Style/Size:	Round with Domed Top, 5mm, T-1 3/4
Package / Case:	Radial	Size / Dimension:	-
Height:	8.60mm	Mounting Type:	Through Hole

Description

Series: -
Current - Test: 20mA
Lens Type: Clear
Color: Red
Voltage - Forward (Vf) Typ: 1.8V
Size / Dimension: -
Package / Case: Radial
Mounting Type: Through Hole
Packaging: Bulk
Lens Style/Size: Round with Domed Top, 5mm, T-1 3/4
Wavelength - Peak: 660nm
Height: 8.60mm
Wavelength - Dominant: 647nm
Millicandela Rating: 1000mcd
Viewing Angle: 10°
Manufacturer: Stanley Electric Co

Features:

・Outer Dimension 5 Round shape type
・Operation temperature range.
Storage Temperature :-30~100
Operating Temperature :-30~85
・Leadfree soldering compatible
・RoHS compliant

Specifications

Item	Symbol	Absolute Max imum Ratings	Unit
Power Dissipation	P_d	125	mW
Forward Current	I_F	50	mA
Pulse Forward Current 1	I_FRM	300	mA
Derating (Ta=25 or higher)	I_F	0.67	mA/
Reverse Voltage	V_R	4	V
Operating Temperature	T_opr	-30~+85
Storage Temperature	T_stg	-30~+100

1 I_FRM Measurement condition : Pulse Width1ms., Duty1/20.
