GXB5005

Features: `General`Implementation of Sony CXD2951GA-4 single chip GPS`Small size with SMD type pads and shield case`Module size (typ.): 22.4 (W) * 23.5 (D) * 3.2 (H) [mm]`Current consumption: Acquisition (typ): 70 [mA] Tracking (typ): 41 [mA] Battery backup (typ): 7 [A]`Datum: WGS-84`Communication...

product image

GXB5005 Picture
See larger image
SeekIC No. : 004357285 Detail

GXB5005: Features: `General`Implementation of Sony CXD2951GA-4 single chip GPS`Small size with SMD type pads and shield case`Module size (typ.): 22.4 (W) * 23.5 (D) * 3.2 (H) [mm]`Current consumption: Acquis...

GXB5005 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GXB5005
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`General
`Implementation of Sony CXD2951GA-4 single chip GPS
`Small size with SMD type pads and shield case
`Module size (typ.): 22.4 (W) * 23.5 (D) * 3.2 (H) [mm]
`Current consumption: Acquisition (typ): 70 [mA] Tracking (typ): 41 [mA] Battery backup (typ): 7 [A]
`Datum: WGS-84
`Communication method: Supports NMEA-0183 version 3.01
`Internal 32.768kHz RTC
`Internal 18.414MHz TCXO
`Antenna input 50
`Recommended antenna element
    `An active antenna with 0dB and RF amplifier with NF 2dB, 8 to 30dB gain


Pinout

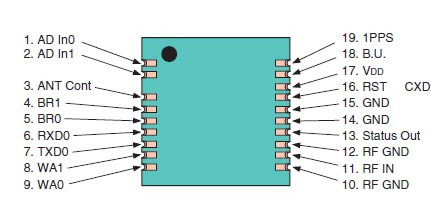

Connection Diagram


Specifications

Item
Symbol
Min.
Max.
Unit
Power supply voltage
VDD
0.5
3.7
V
Input voltage
VI
0.5
5.5
V
Output voltage
VO
0.5
VDD + 0.5
V
Operating temperature
Topr
40
+85
°C
Storage temperature
Tstg
40
+105
°C



Description

The GXB5005 is a 12-channel GPS (Global Positioning System) receiver module. This small module includes all the functions required for GPS and is designed for using an active antenna. The GXB5005 can support the various kinds of the portable applications as well as the car navigation system.
