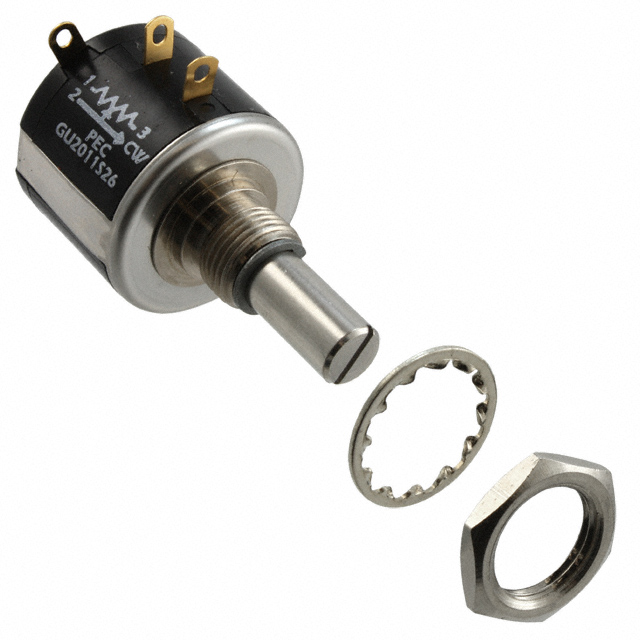

GU2011S26 evaluate
US $4.44 - 7.88 / Piece

POT 2W TEN TURN WW 200 OHM

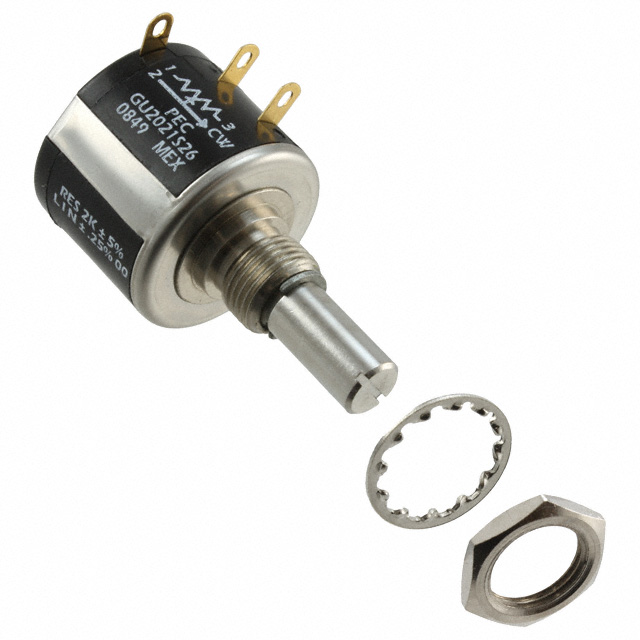

GU2021S26 evaluate
US $4.44 - 7.88 / Piece

POT 2W TEN TURN WW 2K OHM
GU2031S26 evaluate
US $4.44 - 7.88 / Piece

POT 2W TEN TURN WW 20K OHM

Product Details

Description

Features:

*Dynamic dv/dt Rating
*Repetitive Avalanche Rated
*Simple Drive Requirement
*Fast Switching

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Ratings	Unit
Drain-Source Voltage	V_DS	30	V
Gate-Source Voltage	V_GS	±20	V
Continuous Drain Current, V_GS@10V	I_D@T_A=25	20	A
Continuous Drain Current, V_GS@10V	I_D@T_A=70	13	A
Pulsed Drain Current1	I_DM	58	A
Power Dissipation	P_D@T_A=25	31	W
Linear Derating Factor		0.25	W/
Operating Junction and Storage Temperature Range	T_j, T_stg	-55 ~ +150

Description

The GU20N03 provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

The TO-263 package of GU20N03 is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters.
