GTL2000

Features: • Direct interface with TTL level• 6.5Ω ON-state connection between port Sn and DnPinoutSpecifications SYMBOL PARAMETER CONDITIONS RATING UNIT VSREF DC source reference voltage 0.5 to +7.0 V VSREF DC drain reference voltage ...

product image

GTL2000 Picture
See larger image
SeekIC No. : 004357096 Detail

GTL2000: Features: • Direct interface with TTL level• 6.5Ω ON-state connection between port Sn and DnPinoutSpecifications SYMBOL PARAMETER CONDITIONS RATING UNIT VSREF...

GTL2000 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GTL2000
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Direct interface with TTL level
• 6.5Ω ON-state connection between port Sn and Dn


Pinout

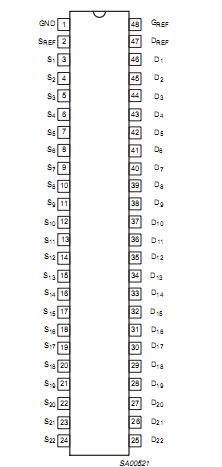

Connection Diagram


Specifications

SYMBOL
 PARAMETER
CONDITIONS
RATING
UNIT
VSREF
 DC source reference voltage
0.5 to +7.0
V
VSREF
 DC drain reference voltage
0.5 to +7.0
V
VGREF
 DC gate reference voltage
0.5 to +7.0
V
VSn
 DC voltage Port Sn
0.5 to +7.0
V
VDn
 DC voltage Port Dn
0.5 to +7.0
V
IREFK
 DC diode current on reference pins
VI < 0 V
50
mA
ISK
 DC diode current Port Sn
VI < 0 V
50
mA
IDK
 DC diode current Port Dn
VI < 0 V
50
mA
IMAX
 DC clamp current per channel
Channel in ON-state
±35
mA
Tstg
 Storage temperature range
65 to +150



Description

The GTL2000 provides twenty-two bits of high-speed voltageclamps. The low ON-state resistance of the clamp allowsconnections to be made with minimal propagation delay.

The GTL2000 is organized as one 22-bit voltage clamp. When S or Dis low the clamp is in the ONstate and a low resistance connectionexists between the S and D ports. When S port and D port are high,the clamp is in the OFF-state and a very high impedance existsbetween the S and D ports. When the D port is high, the voltage of GTL2000 on the S port is clamped to the applied reference voltage on the GREFport.C
