Product Details

Description



Features:

• FT pin for user-configurable flow through or pipelined operation
• Dual Cycle Deselect (DCD) operation
• 3.3 V +10%/5% core power supply
• 2.5 V or 3.3 V I/O supply
• LBO pin for Linear or Interleaved Burst mode
• Internal input resistors on mode pins allow floating mode pins
• Default to Interleaved Pipelined mode
• Byte Write (BW) and/or Global Write (GW) operation
• Common data inputs and data outputs
• Clock control, registered, address, data, and control
• Internal self-timed write cycle
• Automatic power-down for portable applications
• JEDEC standard 100-lead TQFP or 119-Bump BGA package
• Pb-Free 100-lead TQFP package available


Application

The GS840E18/32/36A is a 4,718,592-bit (4,194,304-bit for x32 version) high performance synchronous SRAM with a 2- bit burst address counter. Although of a type originally developed for Level 2 Cache applications supporting high performance CPUs, the device now finds application in synchronous SRAM applications ranging from DSP main store to networking chip set support. The GS84018/32/36A is available in a JEDEC standard 100-lead TQFP or 119-Bump BGA package.


Pinout

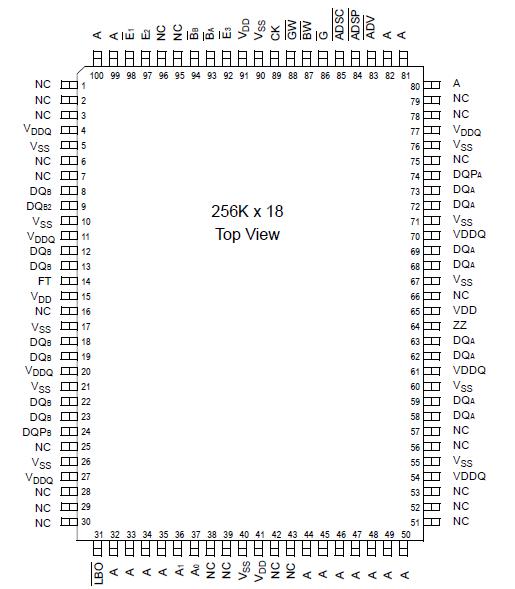

Connection Diagram


Specifications

Symbol Description Value Unit
VDD Voltage on VDD Pins 0.5 to 4.6 V
VDDQ Voltage in VDDQPins 0.5 to VDD V
VCK Voltage on Clock Input Pin 0.5 to 6 V
VI/O Voltage on I/O Pins 0.5 to VDDQ+0.5 ( 4.6 V max.) V
VIN Voltage on Other Input Pins 0.5 to VDD +0.5 ( 4.6 V max.) V
IIN Input Current on Any Pin +/20 mA
IOUT Output Current on Any I/O Pin +/20 mA
PD Package Power Dissipation 1.5 W
TSTG Storage Temperature 55 to 125
TBIAS Temperature Under Bias 55 to 125
Note:
Permanent damage to the device may occur if the Absolute Maximum Ratings are exceeded. Operation should be restricted to Recommended Operating Conditions. Exposure to conditions exceeding the Absolute Maximum Ratings, for an extended period of time, may affect reliability of this component.
