GS74116TP

Features: • Fast access time: 8, 10, 12, 15ns• CMOS low power operation: 170/145/130/110 mA at min.cycle time.• Single 3.3V ± 0.3V power supply• All inputs and outputs are TTL compatible• Byte control• Fully static operation• Industrial Temperature Option:...

product image

GS74116TP Picture
See larger image
SeekIC No. : 004355700 Detail

GS74116TP: Features: • Fast access time: 8, 10, 12, 15ns• CMOS low power operation: 170/145/130/110 mA at min.cycle time.• Single 3.3V ± 0.3V power supply• All inputs and outputs are TT...

GS74116TP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GS74116TP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fast access time: 8, 10, 12, 15ns
• CMOS low power operation: 170/145/130/110 mA at min.cycle time.
• Single 3.3V ± 0.3V power supply
• All inputs and outputs are TTL compatible
• Byte control
• Fully static operation
• Industrial Temperature Option: -40° to 85
• Package line up J: 400mil, 44 pin SOJ package TP: 400mil, 44 pin TSOP Type II package U: 7.20mm x 11.65mm Fine Pitch Ball Grid Array package


Pinout

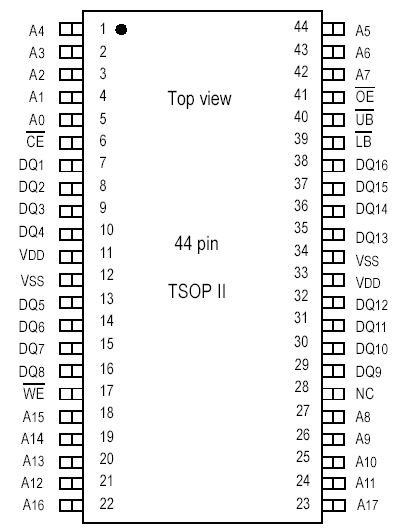

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Supply Voltage VDD -0.5 to +4.6 V
Input Voltage VIN -0.5 to VDD+0.5
( 4.6V max.)		 V
Output Voltage VOUT -0.5 to VDD+0.5
( 4.6V max.)		 V
Allowable power dissipation PD 0.7 W
Storage temperature TSTG -55 to 150



Description

The GS74116 is a high speed CMOS static RAM organized as 262,144-words by 16-bits. Static design eliminates the need for external clocks or timing strobes. Operating on a single 3.3V power supply and all inputs and outputs are TTL compatible. The GS74116 is available in a 7.2x11.65 mm Fine Pitch BGA package, 400 mil SOJ and 400 mil TSOP Type-II packages.
