GS74116A

Features:

• Fast access time: 7, 8, 10, 12 ns
• CMOS low power operation: 150/130/105/95 mA at minimum cycle time
• Single 3.3 V power supply
• All inputs and outputs are TTL-compatible
• Byte control
• Fully static operation
• Industrial Temperature Option: 40° to 85°C
• Package line up
J: 400 mil, 44-pin SOJ package
TP: 400 mil, 44-pin TSOP Type II package
X: 6 mm x 10 mm Fine Pitch Ball Grid Array package

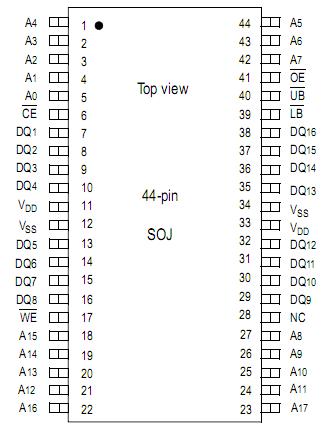

Pinout






Specifications

Parameter	Symbol	Rating	Unit
Supply Voltage	VDD	0.5 to +4.6	V
Input Voltage	VIN	0.5 to VDD +0.5 ( 4.6 V max.)	V
Output Voltage	VOUT	0.5 to VDD +0.5 ( 4.6 V max.)	V
Allowable power dissipation	PD	0.7	W
Storage temperature	TSTG	55 to 150

Description

The GS74116A is a high speed CMOS Static RAM organized as 262,144 words by 16 bits. Static design eliminates the need for external clocks or timing strobes. The GS operates on a single 3.3 V power supply and all inputs and outputs are TTL-compatible. The GS74116A is available in a 6 x 10 mm Fine Pitch BGA package, 400 mil SOJ and 400 mil TSOP Type-II packages.
