GS74104TP

Features: • Fast access time: 8, 10, 12, 15 ns• CMOS low power operation: 150/125/110/90 mA at minimum cycle time.• Single 3.3 V ± 0.3 V power supply• All inputs and outputs are TTL-compatible• Fully static operation• Industrial Temperature Option: 40° to 85°C&#...

product image

GS74104TP Picture
See larger image
SeekIC No. : 004355693 Detail

GS74104TP: Features: • Fast access time: 8, 10, 12, 15 ns• CMOS low power operation: 150/125/110/90 mA at minimum cycle time.• Single 3.3 V ± 0.3 V power supply• All inputs and outputs ...

GS74104TP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GS74104TP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fast access time: 8, 10, 12, 15 ns
• CMOS low power operation: 150/125/110/90 mA at minimum cycle time.
• Single 3.3 V ± 0.3 V power supply
• All inputs and outputs are TTL-compatible
• Fully static operation
• Industrial Temperature Option: 40° to 85°C
• Package line up
    J: 400 mil, 32-pin SOJ package
    TP: 400 mil, 44-pin TSOP Type II package

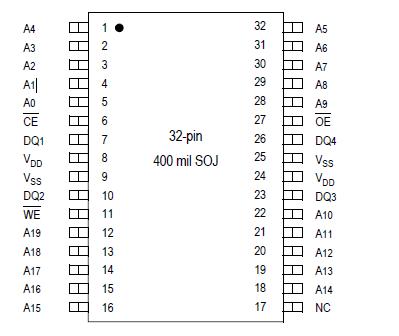

Pinout

Connection Diagram


Specifications

Parameter

 Symbol Rating Unit
Supply Voltage VDD

0.5 to +4.6

 V
Input Voltage VIN

0.5 to VDD +0.5
(< 4.6 V max.)

 V
Output Voltage VOUT

0.5 to VDD +0.5
(<4.6 V max.)

 V
Allowable power dissipation PD

0.7

 W
Storage temperature TSTG

55 to 150

 oC
Note: Permanent device damage may occur if Absolute Maximum Ratings are exceeded. Functional operation shall be
          restricted to Recommended Operating Conditions. Exposure to higher than recommended voltages for extended
          periods of time could affect device reliability


Description

The GS74104 is a high speed CMOS Static RAM organized as 1,048,576 words by 4 bits. Static design eliminates the need for external clocks or timing strobes. The GS operates on a single 3.3 V power supply and all inputs and outputs are TTL-compatible. The GS74104 is available in 400 mil SOJ and 400 mil TSOP Type-II packages.
